Barcodes,Inc.

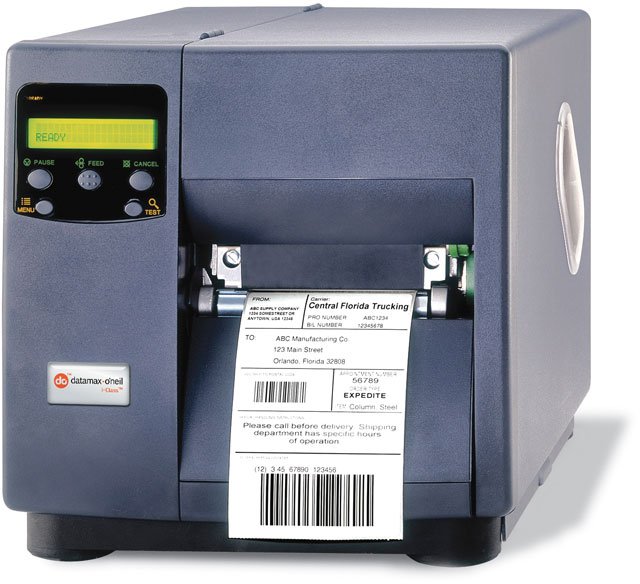

Datamax-O'Neil R23-00-08000007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil I-4308 - Direct thermal only, 305 dpi, 8 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
High performance, high resolution, thermal printer for accurately printing small labels and high quality graphics.

The I-4308 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. Some applications the I-4308 can be used for are producing small labels for tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, or adding an intricate Datamatrix or PDF417 barcode label to a package. All units ship with product documentation.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4308
  • Product Name: I-4308 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL, Canadian, and European safety standards
    • FCC Class A emissions standard
    • CE Mark
  • Additional Information:
    • Character Set: Modified IBM Code Page 850
    • Graphics Support: .PCX, .BMP and .IMG files
    • Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
    • Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4308
Interface Options Serial, Parallel
Print Speed 8
Print Resolution 305 dpi
Max Roll Outer Diameter 8
Maximum Print Width 4.16
Printer Type Industrial
Print Method Direct Thermal
Label Core 1.5 inches
Max Label Width 4.65
Printer Mobility Not Mobile
Ribbon Core 1
