Datamax-O'Neil R22-00-18900007 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

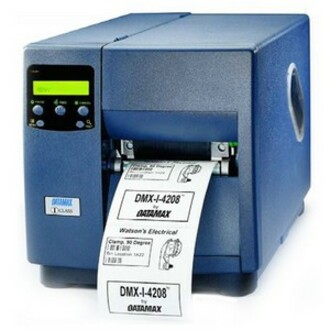

Datamax-O'Neil I-4212 - Thermal transfer, 203 dpi, 4 inch print width, 12 ips print speed, Serial and Parallel interfaces, Peel-and-present and Rewind
Designed for high volume, mission critical applications

The I-4212 is the fastest printer in the Datamax-O-Neil I-Class series. The I-4212 is an excellent choice where high volumes of labels are required quickly, either on demand or in batches. The I-4212 is ideal for printing labels for industrial, commercial, business and clinical labeling applications. All units ship with product documentation

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Rewinder
    • Peel Facility
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4212
  • Product Name: I-4212 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Paper
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Paper
    • Continuous Form
    • Tag
    • Tag Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Additional Information:
    • Present
    • Graphics Supported : .PCX, .BMP and .IMG files

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4212
Maximum Print Width 4.10
Max Label Width 4.65
Interface Options Serial, Parallel
Print Speed 12
Print Method Thermal Transfer
Print Resolution 203 dpi
Label Core 1.5 inches
Printer Type Industrial
Max Roll Outer Diameter 8
Printer Mobility Not Mobile
Ribbon Core 1
