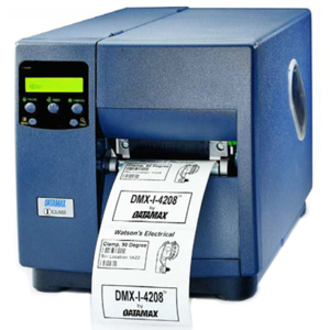

Datamax-O'Neil R22-00-18400Y07 Barcode Printer

0.0

(No reviews)

Be the first to

Datamax-O'Neil I-4212 - Thermal transfer, 203 dpi, 4 inch print width, 12 ips print speed, Serial, Parallel and Ethernet interfaces, Rewind

Check Availability

Designed for high volume, mission critical applications

The I-4212 is the fastest printer in the Datamax-O-Neil I-Class series. The I-4212 is an excellent choice where high volumes of labels are required quickly, either on demand or in batches. The I-4212 is ideal for printing labels for industrial, commercial, business and clinical labeling applications. All units ship with product documentation

Technical Information

Maximum Mono Print Speed: 12 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Features: Rewinder
Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax-O'Neil
Manufacturer: Datamax-O'Neil
Product Model: I-4212
Product Name: I-4212 Thermal Label Printer
Product Line: I-Class

Physical Characteristics

Height: 12.7"
Width: 12.6"
Depth: 18.6"

Media Types & Handling

Maximum Label Width: 4.65"
Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Form
- Perforated Label
- Continuous Tag
- Ticket Stock
Media Size: 4.65" x Roll Paper
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Label Core Size: 3"
Ribbon Core Size: 1"
Maximum Roll Diameter: 8"

Other

Platform Supported: PC
Certifications & Standards:
- Safety Standards:
- UL
- Canadian
- European
- Emission Standards:
- FCC Class A
- CE Mark
Additional Information:
- Graphics Supported: .PCX, .BMP and .IMG files
- Reverse Fields/ Mirror Image: Any font or graphic field can be printed as a normal or reverse image

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Memory

Standard Memory: 16 MB
Memory Technology: SDRAM
Flash Memory: 2 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Ethernet

Warranty

Limited Warranty: 3 Year

Full specifications (PDF)

See all Datamax-O'Neil I-4212 options »

Brand	Datamax-O'Neil
Model	I-4212
Maximum Print Width	4.10
Max Label Width	4.65
Interface Options	Ethernet, Serial, Parallel
Print Resolution	203 dpi
Label Core	1.5 inches
Print Method	Thermal Transfer
Max Roll Outer Diameter	8
Printer Type	Industrial
Print Speed	12
Printer Mobility	Not Mobile
Ribbon Core	1

Customer Review Summary

Recommended Accessories for Model: Datamax-O'Neil I-4212 Printer

	Datamax-O'Neil DMXREW1 (DPO78-2394-01) The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (ips). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated. In Stock: Ships Same Day	$470.60 + Add to Quote
	Datamax-O'Neil I-Class Printer Accessories (DPR78-2773-01) Stepper Motor (for I-Class) In Stock: Ships Same Day	$84.80 + Add to Quote
	Datamax-O'Neil Platen Roller Assembly (15-2761-04) For I-Class printers In Stock: Ships Same Day	$59.20 + Add to Quote
	Datamax-O'Neil (OPT78-2444-01) Peel-and-Present mechanism, for I-Class series printers, Requires rewind In Stock: Ships Same Day	$203.80 + Add to Quote
	Datamax I-Class Accessories (DPR51-2480-00) I-Class Mark II Main Board In Stock: Ships Same Day	$526.10 + Add to Quote

All Accessories for the Datamax-O'Neil I-4212 »

Recommended Labels for Model: Datamax-O'Neil I-4212 Printer

	Datamax-O'Neil Electronic Component Labeling (ECL1753-10) 2.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll. Ships in 3-5 Days	$161.70 + Add to Quote
	Datamax-O'Neil Duratran II (420970) 4" x 6" Thermal transfer paper label. 1,000 labels/roll, 4 roll case. Also available as a roll (Part# 420970-R). In Stock: Ships Same Day	$73.20 + Add to Quote
	Datamax-O'Neil Duratran II (421907) 4" x 6" Thermal transfer kim-syn paper label. 1,000 labels/roll, 4 roll case. In Stock: Ships Same Day	$319.90 + Add to Quote
	Datamax-O'Neil Label (423070) 4" x 6" Thermal transfer polyester paper label. Not perforated. 1,000 labels/roll, 4 roll case. In Stock: Ships Same Day	$579.00 + Add to Quote
	Datamax-O'Neil Label (301931) 3.5" x 1" Direct thermal paper label. 5,500 labels/roll, 4 roll case. Also available as a roll (Part# 301931-R). In Stock: Ships Same Day	$266.50 + Add to Quote

All Labels for the Datamax-O'Neil I-4212 »

Recommended Ribbons for Model: Datamax-O'Neil I-4212 Printer

	Datamax-O'Neil PGR Plus Premium Wax-Resin (295904) 3" x 1182' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1". In Stock: Ships Same Day	$1,073.90 + Add to Quote
	Datamax-O'Neil GPR Plus Premium Wax (222116) 4" x 1182' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", Available as a single roll (222116-R) In Stock: Ships Same Day 5.0 (1 reviews) 1 Review	$367.20 + Add to Quote
	Datamax-O'Neil GPR Plus Premium Wax (222119) 4.25" x 1182' Black Wax Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with paper labels. Also available as a single roll (Part# 222119-R). In Stock: Ships Same Day	$487.40 + Add to Quote
	Datamax-O'Neil GPR Plus Premium Wax (222113) 4.33" x 1182' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", Available as a single roll (222113-R) In Stock: Ships Same Day	$397.50 + Add to Quote
	Datamax-O'Neil GPR Plus Premium Wax (222112) 4.17" x 1182' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 24, Core Size: 1", Available as a single roll (222112-R) In Stock: Ships Same Day	$383.70 + Add to Quote

All Ribbons for the Datamax-O'Neil I-4212 »

Recommended Printheads for Model: Datamax-O'Neil I-4212 Printer

Datamax-O'Neil I-Class (PHD20-2181-01)

Replacement Printhead Kit, 203 dpi, Compatible Printer Model I-Class

In Stock: Ships Same Day

$434.50
+ Add to Quote

All Printheads for the Datamax-O'Neil I-4212 »

Protect Your Product

	Datamax-O'Neil Service Contract - 5 year (R22-WS-W5P0E0C5) Extended Comprehensive Warranty for I-4212 Ships in 3-5 Days	$863.00 + Add to Quote
	Datamax-O'Neil Service Contract - 3 year (R22-WS-W3P0E0C3) Extended Comprehensive Warranty for I-4212 Ships in 3-5 Days	$465.00 + Add to Quote

All Service Contracts for the Datamax-O'Neil I-4212 »
