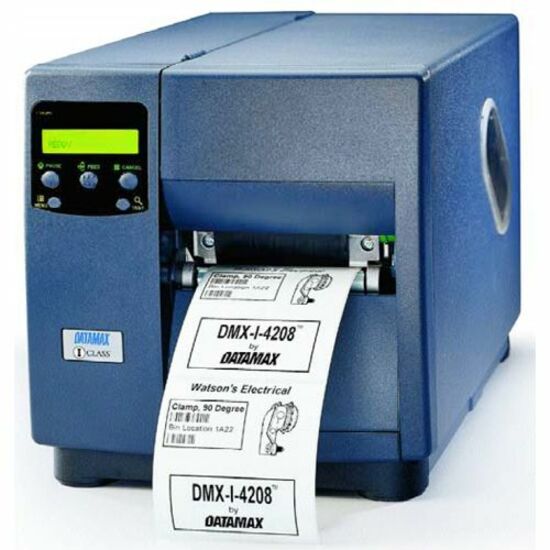

Datamax-O'Neil R22-00-18000Y07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil I-4212 - Thermal transfer, 203 dpi, 12 ips, 4" print width, Ethernet, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes media supply hub & US power cord. Order cables separately. See accessories.
Designed for high volume, mission critical applications

The I-4212 is the fastest printer in the Datamax-O-Neil I-Class series. The I-4212 is an excellent choice where high volumes of labels are required quickly, either on demand or in batches. The I-4212 is ideal for printing labels for industrial, commercial, business and clinical labeling applications. All units ship with product documentation

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4212
  • Product Name: I-4212 Thermal Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • I-4212 Label Printer
    • U.S Power Cord
    • I-4212 Label Printer
    • U.S Power Cord
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emission Standards:
    • FCC Class A
    • CE
  • Additional Information: Graphics Support: PCX, .BMP and .IMG files

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4212
Max Roll Outer Diameter 8
Print Speed 12
Maximum Print Width 4.10
Interface Options Serial, Ethernet, Parallel
Print Method Thermal Transfer
Max Label Width 4.65
Print Resolution 203 dpi
Label Core 1.5 inches
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
