Datamax-O'Neil Q92-00-08000002 Ticket Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil SV-3210 - Direct thermal Printer (203 dpi, USB, Present and Standard TOF Sensor and Vertical Mount)

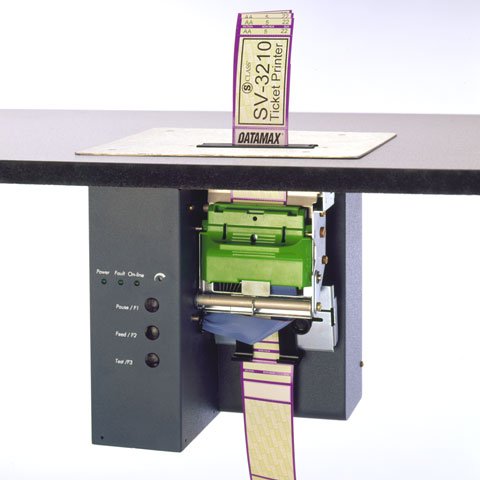

Manufactured specifically for use in the ticketing industry as a high performance, value-priced product, the SV-3210 redefines on-demand printing price and performance criteria for industry specific applications. The SV-3210 printer features a fast 10"/sec print speed at 203 dpi and is designed to work as an under the counter, vertically mounted ticket printer.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 3.15"
  • Recommended Use: Ticket Print
  • Features:
    • Real Time Clock
    • Mirror Printing
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: SV-3210
  • Product Name: S-Class SV-3210 Ticket Printer
  • Product Line: S-Class

Physical Characteristics

  • Height: 10"
  • Width: 8"
  • Depth: 14"
  • Form Factor: Under Counter
  • Weight (Approximate): 18.80 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type:
    • Fanfold
    • Ticket
    • Tag
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor

Other

  • Platform Supported: PC
  • Package Contents:
    • S-Class SV-3210 Ticket Printer
    • Accessories CD
    • S-Class SV-3210 Ticket Printer
    • Accessories CD

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • DPL
    • DTPL

Memory

  • Standard Memory: 4 MB
  • Memory Technology: DRAM
  • Flash Memory: 2 MB

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)
