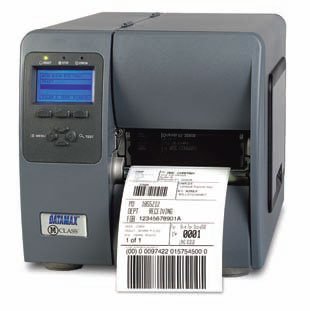

Datamax-O'Neil KJ2-00-48900007 Barcode Printer

Feature-rich printer within a compact modular design, creating a desktop/ light industrial printer at a value price.

The M-4210 is a compact industrial strength printer series that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications.

Technical Information

Maximum Mono Print Speed: 10 in/s
Peel Facility: Yes
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.25"
Recommended Use: Label Print
Features:
- Rewinder
- Peel Facility
Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax
Manufacturer: Datamax-O'Neil
Product Model: M-4210
Product Name: M-4210 Thermal Label Printer
Product Line: M-Class

Physical Characteristics

Height: 10.2"
Width: 10.1"
Depth: 18.2"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.65"
Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Paper
- Continuous Form
- Tag
- Ticket Stock
Media Thickness: 10 mil
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Ribbon Core Size: 1"

Other

Platform Supported: PC
Additional Information:
- Present
- Graphics Supported : .PCX, .BMP and .IMG files

Memory

Standard Memory: 16 MB
Memory Technology: DRAM
Flash Memory: 8 MB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Fonts & Emulation

Language Emulation: DPL

Full specifications (PDF)

See all Datamax-O'Neil M-4210 options »

Brand	Datamax-O'Neil
Model	M-4210
Interface Options	Parallel, USB, Serial
Max Roll Outer Diameter	8
Print Resolution	203 dpi
Label Core	1.5 inches, 3 inches
Print Method	Thermal Transfer
Included Features	Peeler, Rewinder
Max Label Width	4.65
Printer Type	Industrial
Maximum Print Width	4.25
Print Speed	10
Printer Mobility	Not Mobile
Ribbon Core	1
