Datamax-O'Neil KJ2-00-48000Y00 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

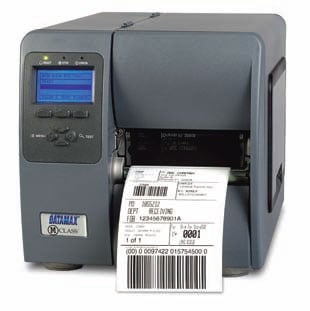

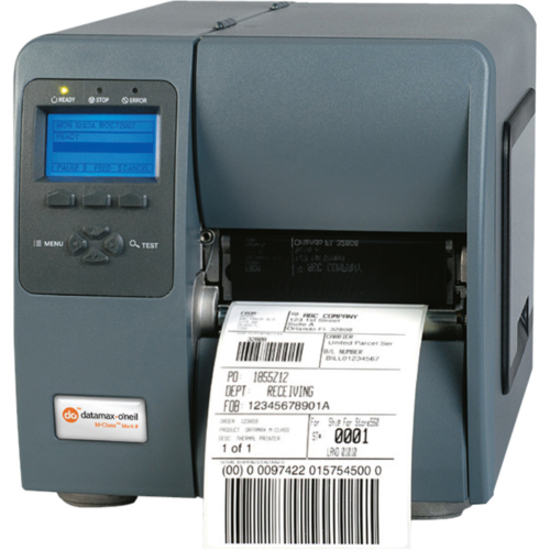

Datamax-O'Neil M-4210 - Thermal transfer Printer, 203 dpi, 10 ips, Cutter, USB, Ethernet, Serial, and Parallel Interfaces. Cables sold separately. See accessories.
$1,365.80
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Feature-rich printer within a compact modular design, creating a desktop/ light industrial printer at a value price.

The M-4210 is a compact industrial strength printer series that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4210
  • Product Name: M-4210 Network Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Paper
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Additional Information:
    • Die Cast Aluminum Frame
    • Revolving Convertible Hub 3"
    • Clear Window in Media Cover
    • Simple Ribbon and Media Loading
    • 32 Bit Multi Tasking DragonBall Processor
    • 128 x 64 LCD Graphical Back Lit LCD Display

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Fonts & Emulation

  • Language Emulation: DPL

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model M-4210
Print Resolution 203 dpi
Label Core 1.5 inches, 3 inches
Max Roll Outer Diameter 8
Print Method Direct Thermal, Thermal Transfer
Interface Options Parallel, Serial, USB, Ethernet
Maximum Print Width 4.25
Printer Type Industrial
Max Label Width 4.65
Print Speed 10
Printer Mobility Not Mobile
Ribbon Core 1
