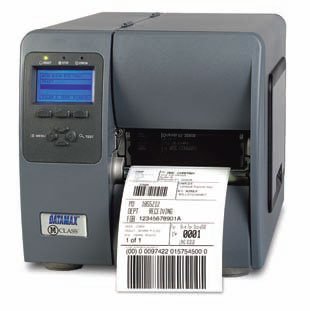

Datamax-O'Neil M-4210 – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: KJ2-00-08000007
Model: M-4210
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  M4210 II Direct Thermal Printer (203 dpi and 10 ips Print Speed)

Datamax M-4210 Barcode Label Printer Model Overview

The M-4210 is a compact industrial strength printer series that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications.
Datamax-O'Neil KJ2-00-08000007 Barcode Label Printer Overview

The new Datamax M-Class compact industrial strength printer is a rugged and versatile printer that provides the most accurate printing and flexible standards for today's business requirements. The smaller footprint of the M-Class is ideal for users who need the power of an industrial printer, but must consider space limitations. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows a variety of options to be upgraded in the field. The M-Class is quickly becoming one of the industries most sought after printers.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • POSTNET
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Tear-off
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Ticket Stock
  • Black Mark
  • Continuous Tag
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.2"
Width:
10.1"
Depth:
18.2"
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC Class A emissions standard
  • CE Mark
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0783555019122, 0807027581679
UPC: 783555019122, 807027581679
EAN: 0783555019122, 0807027581679
UNSPSC: 45101512
