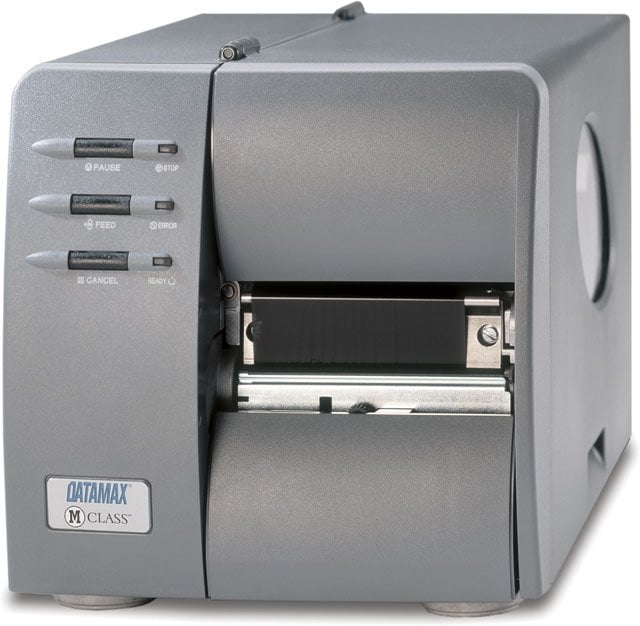

Datamax-O'Neil M-4206 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: KD2-00-48001007
Model: M-4206

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  M-4206 203DPI GR DISP 8MB FLSH TT PLZ 3 HUB W/ MTL CVR KIT

Datamax-O'Neil M-4206 Barcode Label Printer Model Overview

The M-Class Mark II: M-4206 Industrial Printer is the newest addition to the Family of Datamax-O'Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O'Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's barcoding and labeling requirements. The M-Class printer is intended to address the needs of new users of barcoding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
Datamax-O'Neil KD2-00-48001007 Barcode Label Printer Overview

Most Affordable Industrial Printer

The M-Class is a compact, industrial-strength printer that offers outstanding value with a broad range of features. The smaller footprint is ideal when users need the power of industrial printers but must consider space limitations. The M-Class has proven to be the perfect solution for warehouse, healthcare, logistics and retail applications. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows for a variety of options to be upgraded in the field.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC 128
  • EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • GS1 DataBar
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Mirror Printing
  • Media Supply Hub
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Perforated Label
  • Ticket Stock
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLI
  • PLZ
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.2"
Width:
10.1"
Depth:
18.2"
Weight (Approximate):
27 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • Unicode
  • UTF8
Country of Origin:
Mexico
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
