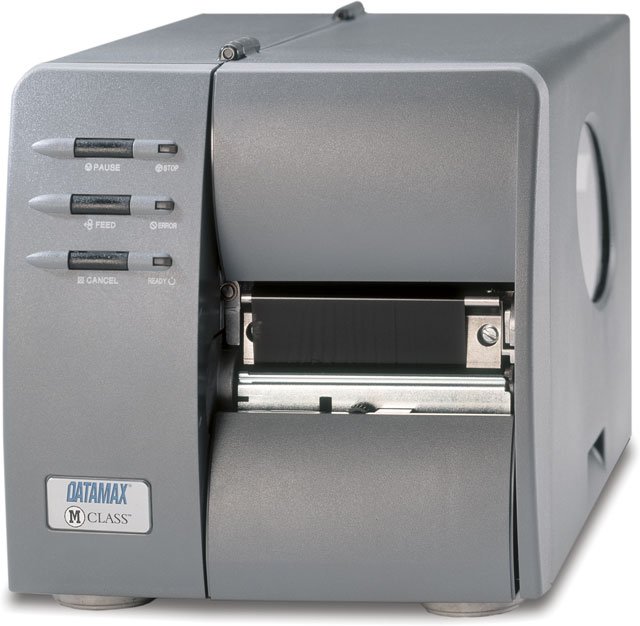

Datamax-O'Neil M-4206 – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: KD2-00-08000Y07
Model: M-4206

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Direct Thermal
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Compact Industrial Printer, Honeywell-Datamax M-4206, Direct Thermal Printer, 203 dpi, 4" Print Width, 6" per Second Print Speed, LAN Interface, 8MB Flash, 64MB Graphic Memory, 3" Media Hub, Includes Power Cord.

Datamax-O'Neil M-4206 Barcode Label Printer Model Overview

The M-Class Mark II: M-4206 Industrial Printer is the newest addition to the Family of Datamax-O'Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O'Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's barcoding and labeling requirements. The M-Class printer is intended to address the needs of new users of barcoding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
Datamax-O'Neil KD2-00-08000Y07 Barcode Label Printer Overview

The M-Class Mark II thermal barcode printer is a compact industrial strength printer series that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications. The solid die-cast metal construction, large graphical display and modular design set the M-Class printer family a step above its competitors. The printer's solid cast metal chassis and durable steel cabinet offer rugged and reliable performance. The easy-to-use graphical display makes navigation through the menus quick and simple for any level user. The modular design offers the flexibility to quickly replace parts in the field or install options to meet changing business requirements. The M-Class offers the best features and performance in its class.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Peel Facility:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Features:
  • Tear Bar
  • LCD Display
Print Technology:
Direct Thermal
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
  • Die-cut Label
  • Roll Fed
  • Continuous Label
  • Fanfold
  • Perforated Label
  • Tag Stock
  • Ticket Stock
Media Size:
Custom Size
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.65"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.2"
Width:
10.1"
Depth:
18.2"
Miscellaneous
Package Contents:
  • M-Class Mark II M-4206 Label Printer
  • Power Cord
  • CD-ROM
  • Documentation
Cables Included:
AC
Platform Supported:
PC
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0014617550117, 0097914499006, 0783555112571
UPC: 014617550117, 097914499006, 783555112571
EAN: 0014617550117, 0097914499006, 0783555112571
UNSPSC: 45101512
