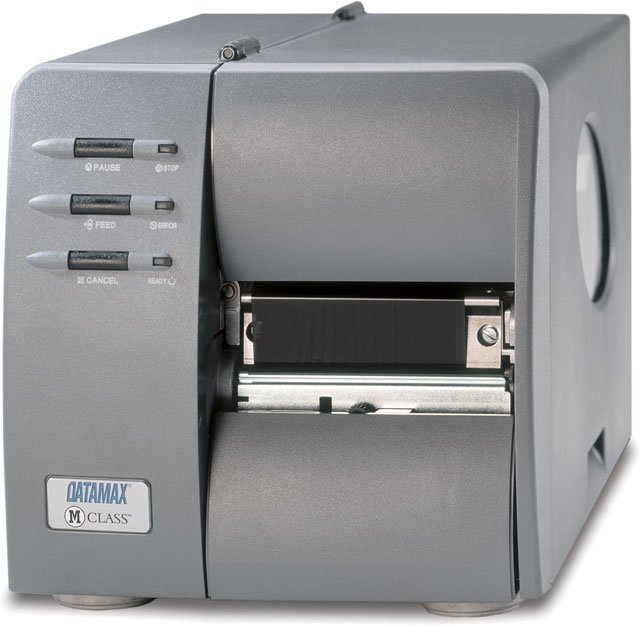

Datamax-O'Neil M-4206 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: KB2-00-48000Y07
Model: M-4206

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
203 dpi
Max Print Width
4.75 inch

Product Description:

  Direct Thermal-Thermal Transfer Printer (203 dpi, 4 Inch Print Width, 6 ips Print Speed, Bi-Directional and LAN)

Datamax-O'Neil M-4206 Barcode Label Printer Model Overview

The M-Class Mark II: M-4206 Industrial Printer is the newest addition to the Family of Datamax-O'Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O'Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's barcoding and labeling requirements. The M-Class printer is intended to address the needs of new users of barcoding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
Datamax-O'Neil KB2-00-48000Y07 Barcode Label Printer Overview

The M-4206 thermal barcode printer is a compact industrial strength printer that offers the power and performance required in industrial environments, the reliability demanded in commercial applications and a small footprint when space is a consideration. It combines powerful standard features with a variety of flexible options to meet the broadest possible range of applications. The metal construction, large graphical display and modular design set the M-4206 printer a step above its competitors. The printer solid cast metal chassis and durable steel cabinet offer rugged and reliable performance. The easy to use graphical display makes navigation through the menus quick and simple for any level user. The modular design offers the flexibility to quickly replace parts in the field or install options to meet changing business requirements.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • RSS
  • Micro PDF-417
  • TLC 39
  • Aztec Code
  • QR Code
  • Data Matrix
  • USD-8
  • PDF-417
  • FIM
  • UPS MaxiCode
  • Telepen
  • UCC/EAN 128
  • POSTNET
  • Code 93
  • UPC 2 and 5 Digit Extension
  • Plessey
  • Codabar
  • HIBC
  • EAN-13
  • EAN-8
  • Code 128
  • Interleaved 2 of 5
  • UPC-E
  • UPC-A
  • Code 39
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
  • Continuous Form
  • Continuous Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.2"
Width:
10.1"
Depth:
18.2"
Miscellaneous
Additional Information:
  • Die-cast aluminum frame
  • Simple ribbon and media loading
  • CG-Triumvirate scalable Font
  • 32bit multi-tasking DragonBall Processor
  • Graphics supported .PCX, .BMP and .IMG files
  • Gap, notch and reflective top of form media sensing
  • Menus in English, French, Italian, German and Spanish
  • 5 button 128 x 64 LCD Graphical back-lit LCD display
  • Clear window in media cover, easy to view supplies
  • Thin film printhead with IntelliSEAQ (Sequential Energy Adjustment for Quality)
Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
