Barcodes,Inc.

Datamax-O'Neil KA3-00-48040Y07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

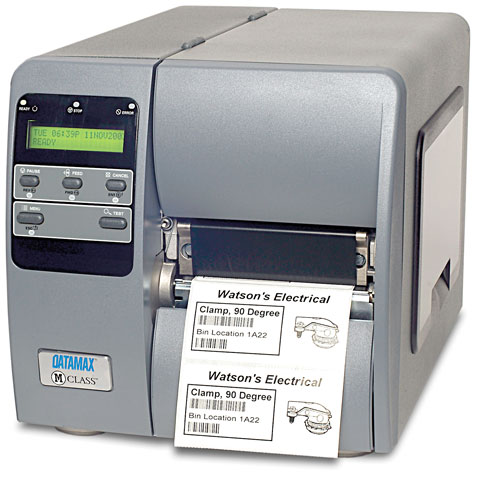

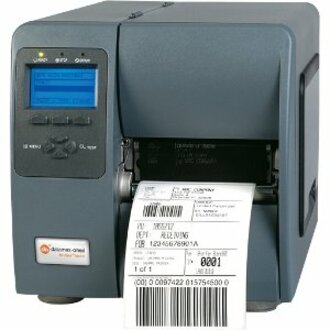

Datamax-O'Neil M-4308 Mark II - Thermal transfer Printer (8M Flash, Cutter and LAN)
$1,864.40
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
8 ips Printing Speed

The Datamax-O-Neil M-4308 takes the M-Class one step further by offering a 300 dpi printer with an 8 ips printing speed, ideal for increased legibility on small text or enhanced graphics. The M-4308 adds the 300 dpi capabilities to the same die-cast frame foundation offered on all M-Class printers.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Mirror Printing
    • Rotate Printing
    • Auto-cutter
    • Media Supply Hub
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar
    • HIBCC
    • EAN/JAN-13
    • EAN/JAN-8

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4308
  • Product Name: M-Class Mark II M-4308 Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"
  • Form Factor: Desktop
  • Weight (Approximate): 27 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Ticket Stock
    • Black Mark
    • Continuous Form
    • Tag Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ
    • DPL
    • ZPL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Other

  • Country of Origin: United States
  • Platform Supported: PC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model M-4308
Max Label Width 4.65
Interface Options Ethernet, Serial, USB, Parallel
Max Roll Outer Diameter 8
Label Core 1.5 inches, 3 inches
Print Method Thermal Transfer, Direct Thermal
Included Features Cutter
Print Speed 8
Maximum Print Width 4.25
Printer Type Industrial
Print Resolution 305 dpi, 300 dpi
Printer Mobility Not Mobile
Ribbon Core 1
