Datamax-O'Neil KA3-00-48000Y07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

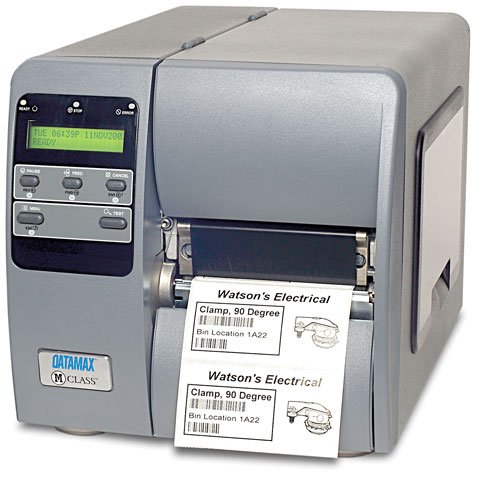

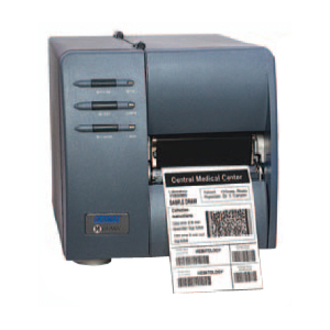

Datamax-O'Neil M-4308 - PRINTER, 4in, Thermal transfer, SERIAL/PARALLEL/USB, Ethernet, 300 DPI, 8 ips, GRAPHIC DISPLAY, POWER CORD INCLUDED
$1,522.30
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
8 ips Printing Speed

The Datamax-O-Neil M-4308 takes the M-Class one step further by offering a 300 dpi printer with an 8 ips printing speed, ideal for increased legibility on small text or enhanced graphics. The M-4308 adds the 300 dpi capabilities to the same die-cast frame foundation offered on all M-Class printers.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: M-4308
  • Product Name: M-4308 Network Thermal Label Printer
  • Product Line: M-Class

Physical Characteristics

  • Height: 10.2"
  • Width: 10.1"
  • Depth: 18.2"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Paper
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Additional Information:
    • Die Cast Aluminum Frame
    • Clear Window in Media Cover
    • Simple Ribbon and Media Loading
    • 32 Bit Multi Tasking DragonBall Processor
    • 128 x 64 LCD Graphical Back Lit LCD Display

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Fonts & Emulation

  • Language Emulation: DPL

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model M-4308
Max Roll Outer Diameter 8
Print Method Thermal Transfer
Interface Options Serial, Parallel, Ethernet, USB
Print Speed 8
Maximum Print Width 4.25
Label Core 1.5 inches, 3 inches
Print Resolution 305 dpi, 300 dpi
Max Label Width 4.65
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
