Datamax-O'Neil KA3-00-48000007 Barcode Label Printer

Datamax-O'Neil KA3-00-48000007 Barcode Label Printer

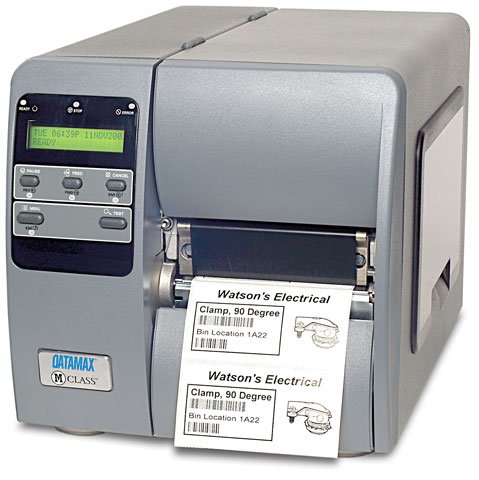

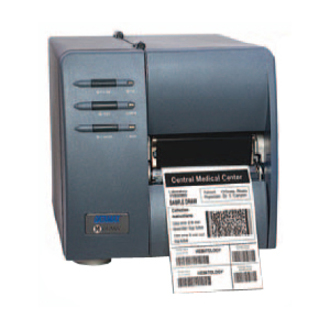

Datamax-O'Neil M-4308 - Thermal transfer Printer (300 dpi, 8 ips, 4.16" print width, Bi-Directional)

$1,320.80

In Stock:

Your satisfaction is guaranteed!

We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.

+ Add to Quote

8 ips Printing Speed

The Datamax-O-Neil M-4308 takes the M-Class one step further by offering a 300 dpi printer with an 8 ips printing speed, ideal for increased legibility on small text or enhanced graphics. The M-4308 adds the 300 dpi capabilities to the same die-cast frame foundation offered on all M-Class printers.

Technical Information

Maximum Mono Print Speed: 8 in/s
Maximum Print Resolution: 300 dpi
Print Color: Monochrome
Maximum Print Width: 4.25"
Recommended Use: Label Print
Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax-O'Neil
Manufacturer: Datamax-O'Neil
Product Model: M-4308
Product Name: M-4308 Thermal Label Printer
Product Line: M-Class

Physical Characteristics

Height: 10.2"
Width: 10.1"
Depth: 18.2"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.65"
Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Paper
- Continuous Tag
- Ticket Stock
Media Thickness: 10 mil
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Label Core Size: 3"
Ribbon Core Size: 1"
Maximum Roll Diameter: 8"

Other

Platform Supported: PC
Additional Information:
- Die Cast Aluminum Frame
- Clear Window in Media Cover
- Simple Ribbon and Media Loading
- 32 Bit Multi Tasking DragonBall Processor
- 128 x 64 LCD Graphical Back Lit LCD Display

Memory

Standard Memory: 16 MB
Memory Technology: DRAM
Flash Memory: 8 MB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Fonts & Emulation

Language Emulation: DPL

Full specifications (PDF)

See all Datamax-O'Neil M-4308 options »

Brand	Datamax-O'Neil
Model	M-4308
Max Roll Outer Diameter	8
Max Label Width	4.65
Label Core	3 inches, 1.5 inches
Interface Options	Serial, USB, Parallel
Print Speed	8
Maximum Print Width	4.25
Printer Type	Industrial
Print Method	Thermal Transfer
Print Resolution	305 dpi, 300 dpi
Printer Mobility	Not Mobile
Ribbon Core	1
