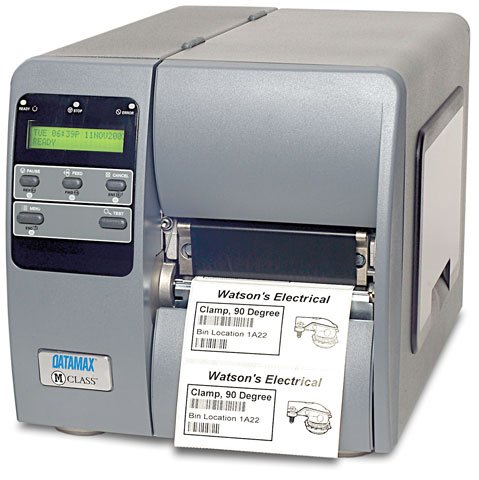

Datamax-O'Neil M-4306 – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: K23-00-18000000
Model: M-4306
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
305 dpi
Max Print Width
4.75 inch

Product Description:

  Thermal Transfer & Direct Thermal, 300 dpi, 6 ips print speed, 2MB RAM. Includes plastic cover
Explore all Datamax-O'Neil M-4306 Barcode Label Printers
Add to Quote
Datamax-O'Neil K23-00-18000000 Barcode Label Printer
Datamax-O'Neil K23-00-18000000 Barcode Label Printer
Datamax-O'Neil K23-00-18000000 Barcode Label Printer Datamax-O'Neil K23-00-18000000 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil M-4306 Barcode Label Printer Model Overview

The M-4306 takes the M-Class one step further by offering a 300-dpi printer, ideal for increased legibility on small text or enhanced graphics. The M-4306 adds the 300-dpi capabilities to the same die-cast frame foundation offered on all M-Class printers.
Datamax-O'Neil K23-00-18000000 Barcode Label Printer Overview

The M-4306 Label Printer is built on a uni-frame, die-cast aluminum chassis, increasing the printer's durability throughout a lifetime of high performance output. The truly modular design of the M-4306, unique to Datamax printers, allows options to be installed and removed in the field. Datamax printers offer versatility that is unparalleled in the thermal printing industry. Datamax builds products that provide value and cost savings to users, and the M-Class continues this legacy. n Pharmacy n Shipping n Product Labeling

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s 6 lps
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Continuous Tag
  • Ticket Stock
  • Perforated Label
  • Continuous Form
Media Size:
4.65" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.3"
Width:
9.8"
Depth:
18.1"
Miscellaneous
Additional Information:
  • Plastic Cover
  • On-board Real Time Clock
  • Graphics supported .PCX, .BMP and .IMG files
  • 8" outer diameter on a 3.0" core and 7" on a 1.5" core
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
