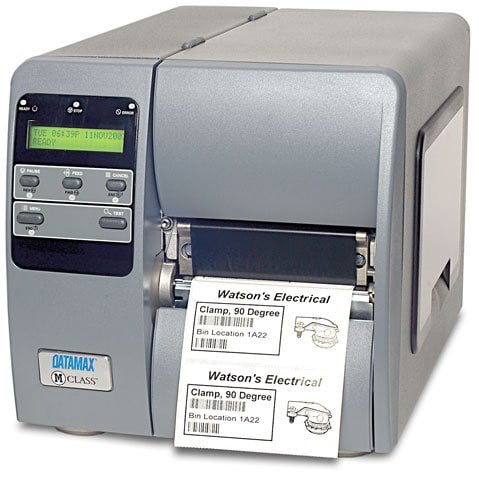

Datamax-O'Neil K22-00-18400001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil M-4208 - Thermal transfer, 203 dpi, 4 inch Print width, 8 ips Print speed, Serial / Parallel / USB Interface, 8MB DRAM, 2MB Flash, Metal Cover and Internal Rewind

The new M-4208 is designed for applications that require more performance than the M-4206. The M-4208 offers more speed, processing power, connectivity options and includes an LCD display.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.25"
  • Maximum Label Width: 4.65"
  • Maximum Label Length: 99"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage Range:
    • 90 to 132 V AC
    • 180 to 264 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions:
    • 10.3" (261.62mm) x 9.8" (248.92mm) x 18.06" (459mm)
    • 10.3" (261.62mm) x 9.8" (248.92mm) x x 18.06" (459mm)
  • Weight: 27 lb (12.25 kg)

Included Features

  • Included Features: Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian Standard
    • European Standard
    • FCC Class A
    • CE Mark

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 40°F (4°C) to 95°F (35°C) Operating

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model M-4208
Print Method Thermal Transfer
Print Resolution 203 dpi
Label Core 1.5 inches
Max Label Width 4.65
Interface Options Serial, USB, Parallel
Print Speed 8
Maximum Print Width 4.25
Max Roll Outer Diameter 8
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
