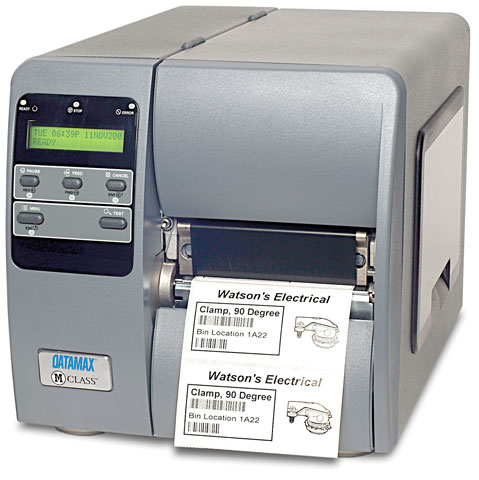

Datamax-O'Neil M-4208 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: K22-00-18000001
Model: M-4208
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 8 ips, 4.25" print width, parallel, serial & USB interfaces, 8MB RAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
Explore all Datamax-O'Neil M-4208 Barcode Label Printers
Add to Quote
Datamax-O'Neil K22-00-18000001 Barcode Label Printer
Datamax-O'Neil K22-00-18000001 Barcode Label Printer
Datamax-O'Neil K22-00-18000001 Barcode Label Printer Datamax-O'Neil K22-00-18000001 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil M-4208 Barcode Label Printer Model Overview

The new M-4208 is designed for applications that require more performance than the M-4206. The M-4208 offers more speed, processing power, connectivity options and includes an LCD display.
Datamax-O'Neil K22-00-18000001 Barcode Label Printer Overview

Datamax is poised to revolutionize the thermal printing industry again with the M-4208 Label Printer. The M-4208 offers users a durable, technologically advanced thermal printer with the design principles that have proven successful in other Datamax printers, in a smaller footprint for use in emerging market applications. Thermal printing is expanding to more vertical market and industry applications, and Datamax is maintaining a leadership position in printer design and performance with the M-4208. The M-4208 is built on a uni-frame, die-cast aluminum chassis, increasing the printer's durability throughout a lifetime of high performance output.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • TLC 39
  • Aztec Code
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
63 Hz
Physical Characteristics
Height:
10.3"
Width:
9.8"
Depth:
18.1"
Miscellaneous
Additional Information:
  • Graphics supported .PCX, .BMP and .IMG files
  • On-board Real Time Clock
  • 8" outer diameter on a 3.0" core and 7" on a 1.5" core
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emissions Standard:

  • CE
  • FCC Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
