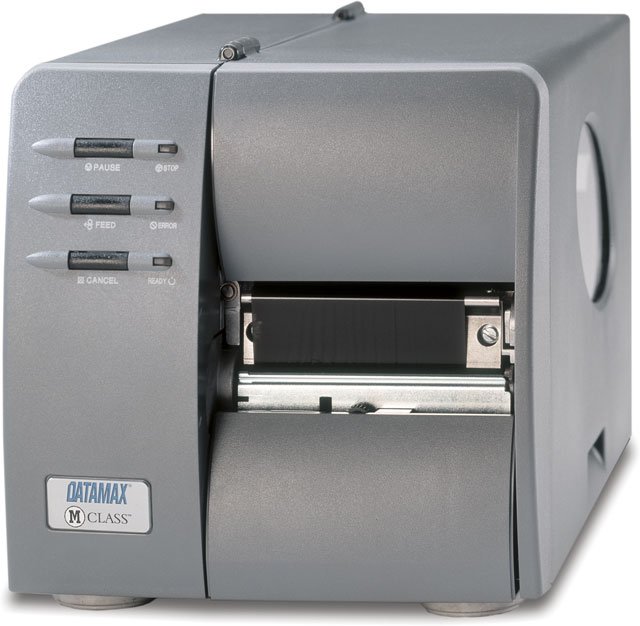

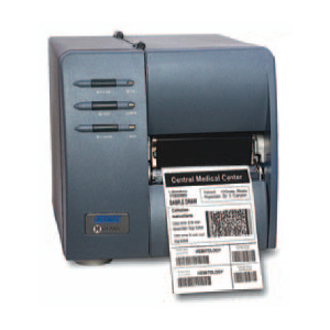

Datamax-O'Neil M-4206 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: K12-00-18400000
Model: M-4206

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Thermal transfer & direct thermal, 203 dpi, 6 ips, 4.25" print width, parallel, serial & USB interfaces, 4MB RAM, 2MB flash. Includes US power cord & rewinder. Order cables separately. See accessories.

Datamax-O'Neil M-4206 Barcode Label Printer Model Overview

The M-Class Mark II: M-4206 Industrial Printer is the newest addition to the Family of Datamax-O'Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O'Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's barcoding and labeling requirements. The M-Class printer is intended to address the needs of new users of barcoding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
Datamax-O'Neil K12-00-18400000 Barcode Label Printer Overview

The M-4206 is the printer of choice for desktop and light industrial applications limited to small work space. When your printing application requires a flexible solution and your budget requires a low total cost of ownership, the M-4206 is your hero. The beauty of the M-4206 lies in its design, combining sophisticated engineering characteristics, rugged materials, and modularity. The capabilities of the M-4206 are diverse, from your office desk, to a busy hospital pharmacy, or a manufacturing environment. The M-4206 accommodates many variables in your printing application or labeling requirement, lending itself to be the best value in a mid-range printer in today's marketplace.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • TLC 39
  • Aztec Code
  • Micro PDF-417
  • RSS
Rewinder:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
4 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.3"
Width:
9.8"
Depth:
18.1"
Miscellaneous
Additional Information:
  • Graphics supported .PCX, .BMP and .IMG files
  • On-board Real Time Clock
  • 8" outer diameter on a 3.0" core and 7" on a 1.5" core
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emissions Standard:

  • CE
  • FCC Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
