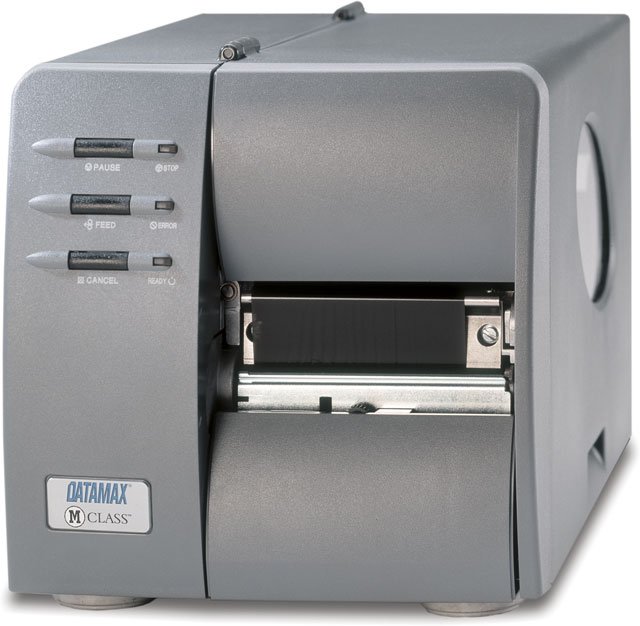

Datamax-O'Neil M-4206 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: K12-00-16000000
Model: M-4206

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal-Thermal Transfer, 203 dpi, 4.25 Inch Print Width, 6 ips Print Speed, Serial, Parallel and USB Interfaces, 4MB DRAM, 2MB Flash, 220V British and European PlugsBottom of Form

Datamax-O'Neil M-4206 Barcode Label Printer Model Overview

The M-Class Mark II: M-4206 Industrial Printer is the newest addition to the Family of Datamax-O'Neil printers and the first in a series of forthcoming M-Class printers. The M-Class combines industry-recognized engineering and a superior design, borrowed from the industry-leading Datamax-O'Neil I-Class printers. The M-4206 was designed to exceed the expectations of the most demanding users. The M-4206 is built on a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users requiring mission-critical printing capabilities. The M-Class features a compact, modular design for use in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. By incorporating these successful design features into a user-friendly, small footprint printer, the M-Class exceeds today's barcoding and labeling requirements. The M-Class printer is intended to address the needs of new users of barcoding technology, as well as the prominent choice for users who have aging thermal printers that need to be replaced.
Datamax-O'Neil K12-00-16000000 Barcode Label Printer Overview

The M-4206 Label Printer, countless users have discovered the benefits of incorporating a sturdy, well-designed printer into mid-volume, high-performance printing applications. Users in the medical, manufacturing, government, retail and food processing sectors have embraced the M-4206 Label Printer, making it the most successful mid-range printer available on the thermal printer market today. The compact, modular design enables high-performance printing while allowing users to allocate less space to their printing capabilities.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
4 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.3"
Width:
9.8"
Depth:
18.1"
Miscellaneous
Package Contents:
  • M-4206 Label Printer
  • Accessories CD
Additional Information:
  • Real Time Clock: On-board real time clock maintains the printers hours of use, inches printed, and time and date.
  • Graphics Supported: .PCX, .BMP and .IMG files
  • Reverse Fields/Mirror Image: Any font or graphic field can be printed as a normal or reverse image
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emission Standards:

  • FCC Class A
  • CE Mark
Item Numbers
UNSPSC: 43212108
