Datamax-O'Neil E-4205e – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: JB2-00-4J000800
Model: E-4205e
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
USB
Print Resolution
203 dpi

Product Description:

  E-4205e Direct Thermal Printer (USB and Peel) - Color: White
Explore all Datamax-O'Neil E-4205e Barcode Label Printers
Add to Quote
Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer
Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer
Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer
Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer
Full specifications (PDF)

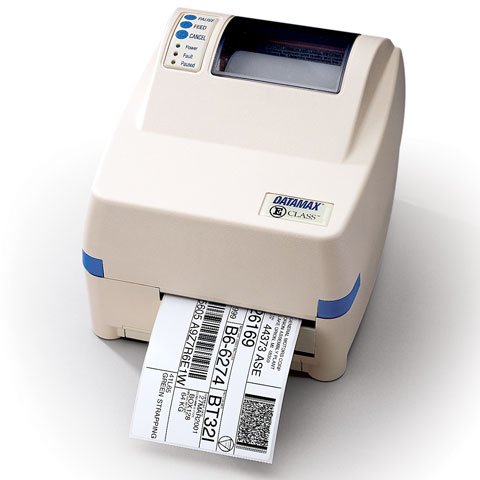

Datamax-O'Neil E-4205e Barcode Label Printer Model Overview

The Datamax-O-Neil E-4205e E-Class Mark II thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. The E-4205e features a 4.25" print width, a print speed of 5"/second and a resolution of 203 dpi. It is ideal for a vast number of diverse applications that require a dependable and cost effective barcode printer. The Datamax-O-Neil E-4205e has a uniquely designed adjustable print mechanism with advanced media sensing.
Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer Overview

The E-Class Mark II is a small, cost effective thermal printer designed for businesses of all sizes that need a reliable label or tag printing solution for their mission critical operations. The E-Class' flexible design allows it to fit in a wide variety of applications that require dependability, cost effectiveness, versatility and a small footprint without sacrificing print quality.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 or 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
Adjustable Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.30"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLI
  • PLZ
Battery Information
Battery Included:
Yes
Physical Characteristics
Color Family:
White
Product Color:
White
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Package Contents:
  • E-Class E-4205e Mark II Label Printer
  • Battery Pack
  • External Rewinder
  • External Media Supply Stand
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (2)
  • Power Device (3)
  • Printer Accessories (30)
  • Printhead Cleaner (1)
  • Seagull Scientific Barcode Software (2)
  • Spare Parts (4)

Recommended Accessories for Model: Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer

Top Batteries Purchased With Datamax-O'Neil JB2-00-4J000800

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil JB2-00-4J000800

Top Power Device Purchased With Datamax-O'Neil JB2-00-4J000800

Top Printer Accessories Purchased With Datamax-O'Neil JB2-00-4J000800

See All Printer Accessories for Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer >

Top Printhead Cleaner Purchased With Datamax-O'Neil JB2-00-4J000800

Top Seagull Scientific Barcode Software Purchased With Datamax-O'Neil JB2-00-4J000800

  • Seagull Software BTA-2 Software
    Seagull Software BTA-2 Software
    BarTender Automation: Application License + 2 Printers (includes Maintenance), Use (Part# BTA-PRT) To Add Additional Printers To License. Priced per printer with unlimited computers, not per computer with unlimited printers.
    $1,415.00
    Add to Quote
  • Seagull Software BTP-1 Software
    Seagull Software BTP-1 Software
    BarTender Professional: Application License + 1 Printer (includes 1 Year of Standard Support & Maintenance), For additional printer license (Part# BTP-PRT). Priced per printer with unlimited computers, not per computer with unlimited printers. No Physical Box: Product code via Electronic Delivery.
    $548.00
    Add to Quote

Top Spare Parts Purchased With Datamax-O'Neil JB2-00-4J000800

See All Spare Parts for Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil JB2-00-4J000800 Barcode Label Printer is also known as DMX-E4205EWTPU or JB2-00-4J000800.
