Datamax-O'Neil JA3-00-1J000H00 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

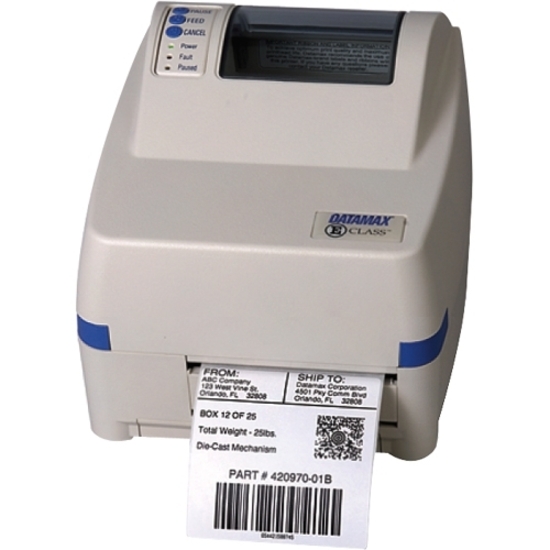

Datamax-O'Neil E-4304e Mark II - Thermal transfer Printer (LAN, 8MB Flash, USB, Real-time clock and DPL)
Unique print mechanism designed to print on thick materials

The Datamax-O-Neil E-4304e E-Class Mark II thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. The E-4304e features a 4.12" print width, a print speed of 4"/second and a resolution of 300 dpi. It is ideal for a vast number of diverse applications that require a dependable and cost effective barcode printer. The Datamax-O-Neil E-4304e has a uniquely designed adjustable print mechanism with advanced media sensing.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 93
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5 A
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • USD-8
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4304
  • Product Name: E-Class E-4304 Thermal Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.1"
  • Width: 8.8"
  • Depth: 10"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.30"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Additional Information:
    • See through media window
    • Flash upgradeable firmware
    • Graphics Supported: .PCX, .BMP and .IMG files
    • 3-button, 3-LED control panel for maximum configuration flexibility and printer status indication

Memory

  • Standard Memory: 2 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4304e
Max Roll Outer Diameter 5
Print Speed 4
Maximum Print Width 4.12
Print Method Thermal Transfer
Printer Type Desktop
Print Resolution 305 dpi
Max Label Width 4.30
Label Core 1 inch
Interface Options USB
Printer Mobility Not Mobile
