Datamax-O'Neil E-4205e – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: JA2-00-1J000Q00
Model: E-4205e
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
USB, Wi-Fi
Print Resolution
203 dpi

Product Description:

  E-4205e Direct Thermal-Thermal Transfer Printer (Wireless LAN, USB and 8MB Flash) - Color: White
Explore all Datamax-O'Neil E-4205e Barcode Label Printers
Add to Quote
Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer
Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer
Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer
Full specifications (PDF)

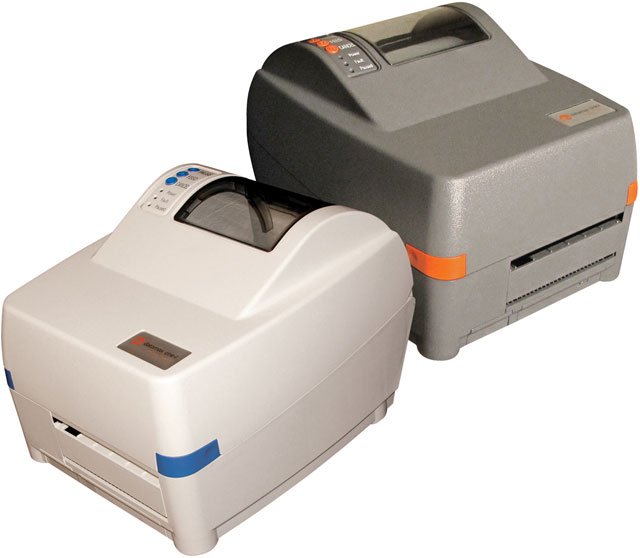

Datamax-O'Neil E-4205e Barcode Label Printer Model Overview

The Datamax-O-Neil E-4205e E-Class Mark II thermal desktop printer offers a proven and reliable label and tag printing solution in a compact footprint. The E-4205e features a 4.25" print width, a print speed of 5"/second and a resolution of 203 dpi. It is ideal for a vast number of diverse applications that require a dependable and cost effective barcode printer. The Datamax-O-Neil E-4205e has a uniquely designed adjustable print mechanism with advanced media sensing.
Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer Overview

The compact E-4205e printer incorporates a state of the art processor which provides the fastest label generation and print speed of any printer in its class and a throughput that is nearly 70% faster than previous E-Class models. E-4205e also offers the latest connectivity, which makes it the ideal solution for a wide range of industries that increasingly rely on networking technology, including healthcare, manufacturing and retail. A uniquely designed adjustable print mechanism along with advanced media sensing and handling results in outstanding print quality. These features also give the printer the ability to print quickly and accurately on the most challenging label shapes, materials, grades and coatings. The printer's small footprint allows it to fit on any desktop or counter and can be easily upgraded in the field with numerous features.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
Real Time Clock:
Yes
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.30"
Label Core Size:
1"
Ribbon Core Size:
0.50"
Physical Characteristics
Color Family:
White
Product Color:
White
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Additional Information:
  • Sensors: notch or hole sensing
  • 3-button, 3-LED control panel
  • Clear see-through media window
  • Flash upgradeable firmware
  • Die cast metal frame
  • Easy access cantilevered printhead
  • Universal printer command language: PLZ, PLI, PLB
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (2)
  • Power Device (3)
  • Printer Accessories (30)
  • Printhead Cleaner (1)
  • Seagull Scientific Barcode Software (2)
  • Spare Parts (4)

Recommended Accessories for Model: Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer

Top Batteries Purchased With Datamax-O'Neil JA2-00-1J000Q00

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil JA2-00-1J000Q00

Top Power Device Purchased With Datamax-O'Neil JA2-00-1J000Q00

Top Printer Accessories Purchased With Datamax-O'Neil JA2-00-1J000Q00

See All Printer Accessories for Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer >

Top Printhead Cleaner Purchased With Datamax-O'Neil JA2-00-1J000Q00

Top Seagull Scientific Barcode Software Purchased With Datamax-O'Neil JA2-00-1J000Q00

  • Seagull Software BTA-2 Software
    Seagull Software BTA-2 Software
    BarTender Automation: Application License + 2 Printers (includes Maintenance), Use (Part# BTA-PRT) To Add Additional Printers To License. Priced per printer with unlimited computers, not per computer with unlimited printers.
    $1,415.00
    Add to Quote
  • Seagull Software BTP-1 Software
    Seagull Software BTP-1 Software
    BarTender Professional: Application License + 1 Printer (includes 1 Year of Standard Support & Maintenance), For additional printer license (Part# BTP-PRT). Priced per printer with unlimited computers, not per computer with unlimited printers. No Physical Box: Product code via Electronic Delivery.
    $548.00
    Add to Quote

Top Spare Parts Purchased With Datamax-O'Neil JA2-00-1J000Q00

See All Spare Parts for Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer >
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil JA2-00-1J000Q00 Barcode Label Printer is also known as DMX-E4205WTWLU or JA2-00-1J000Q00.
