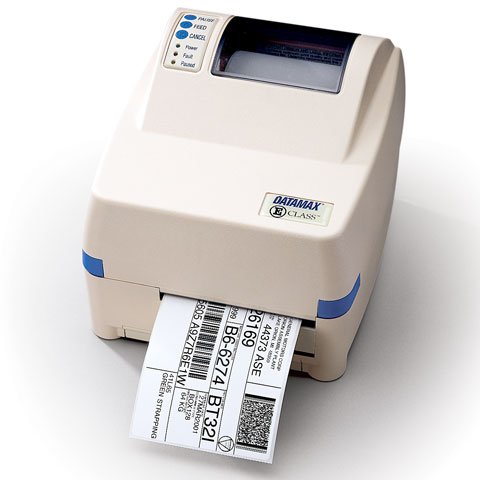

Datamax-O'Neil E-4203 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: J62-00-1J000U0M
Model: E-4203
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal & Thermal Transfer, 203 dpi, 4.3", Serial, Parallel, USB interface, 2MB DRAM, 1 MB Flash, Adjustable media sensor
Explore all Datamax-O'Neil E-4203 Barcode Label Printers
Add to Quote
Datamax-O'Neil J62-00-1J000U0M Barcode Label Printer
Datamax-O'Neil J62-00-1J000U0M Barcode Label Printer
Datamax-O'Neil J62-00-1J000U0M Barcode Label Printer Datamax-O'Neil J62-00-1J000U0M Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4203 Barcode Label Printer Model Overview

The E-4203 printer was designed from the ground up to be more price, feature, and value competitive than any other printer in its class. The E-4203 can print a wide variety of labels ranging from small office shipping labels to compliance and general purpose product identification labels and tags. Medical laboratories, automobile service shops, shipping/mail centers, and inventory stock rooms are all typical examples of the types of businesses that can benefit from the E-4203. and with PDF417 and MaxiCode 2D barcode capabilities, the E-4203 can print complex transportation symbols and label formats. The E-4203 printer is available in Direct Thermal or Thermal Transfer mode. All units ship with product documentation.
Datamax-O'Neil J62-00-1J000U0M Barcode Label Printer Overview

Datamax Corporation is pleased to offer the DMX-E-4203 printer, the first of a comprehensive line of entry-level printers designed for low- to medium-volume labeling applications. The E-4203 is a small, compact, thermal printer designed for a variety of label and tag printing applications. The E-4203 is designed to meet the needs of sub-industrial printing applications and has a British plug. The E-4203 represents a significant achievement in printer design and engineering. Its small footprint, sleek enclosure and enhanced electronics and firmware combined result in an outstanding entry-level printer.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • Plessey
  • TLC 39
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Size:
4.30" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
4"
Maximum Label Width:
4.30"
Maximum Label Length:
24"
Label Core Size:
1"
Ribbon Core Size:
0.50"
Physical Characteristics
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • E-4203 Label Printer
  • US Power Cord
Cables Included:
AC
Additional Information:
  • Adjustable Media Sensor
  • See-through media window
  • Flash upgradeable firmware
  • A unique case top for direct thermal application
  • Graphics Supported: .PCX, .BMP and .IMG files
  • External power supply: Specify appropriate power supply and cord when ordering
Platform Supported:
PC
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emissions Standard:

  • CE
  • FCC Class A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
