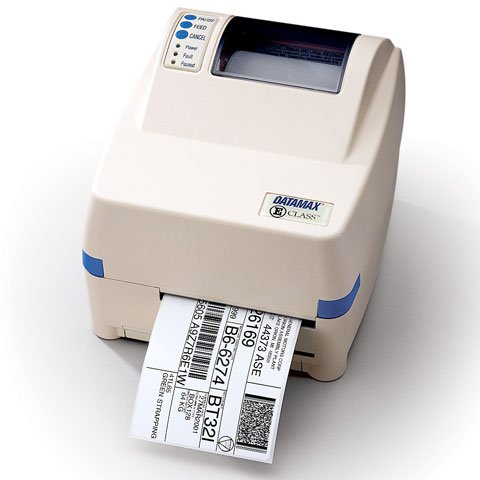

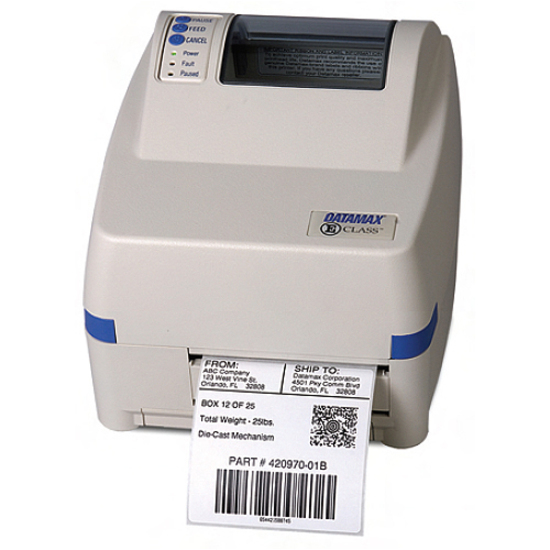

Datamax-O'Neil E-4204 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: J42-00-4J000U00
Model: E-4204
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal with thermal transfer covers (requires (Part# OPT78-2354-01) for thermal transfer capability), 203 dpi, 4 Inch Print Width, 4 ips Print Speed, RS-232 Serial, Parallel and USB Interfaces, Cover and Standard Media Sensor. Includes US power cord.
Explore all Datamax E-4204 Barcode Label Printers
Add to Quote
Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer
Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer
Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer
Full specifications (PDF)

Datamax E-4204 Barcode Label Printer Model Overview

The E-4204 entry level printer performs in a wide range of environments from office & retail to light industrial locations. The E-4204 expands on the successful design elements of the Datamax E-Class and adds important capabilities designed to enhance the printer's performance while continuing to provide exceptional value. Available in either direct thermal or thermal transfer mode, the E-4204 is a versatile product designed for performance. The E-Class printers continue to feature a small footprint, sleek enclosure and enhanced printing capabilities to provide exceptional entry-level printers.
Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer Overview

The Datamax E-4204 is a lightweight, space saving line of thermal printers designed with leading edge technology for a multitude of label and tag printing applications. These printers are engineered for small size but packed with big features including an advanced multi-tasking processor with large memory, interfaces and a three button control panel. In addition, a full complement of industry standard linear bar codes as well as the complex two-dimensional symbologies are resident in the printer's memory. With all this power loaded into such a small footprint, the E-4204 is the printer choice for a wide variety of low to medium volume labeling applications ranging from the needs of those in an office or research facility to those of a shipping or transportation center.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Paper
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.30"
Label Core Size:
1"
Ribbon Core Size:
0.50"
Physical Characteristics
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Additional Information:
  • Cover Sensor
  • Standard Media Sensor
  • External auto-ranging power supply
  • advanced 32-bit multi-tasking processor
  • Graphics Supported: .PCX, .BMP and .IMG files
  • Plastic construction, clear top window to easily monitor media supply levels
Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (2)
  • Power Device (3)
  • Printer Accessories (31)
  • Printhead Cleaner (1)
  • Seagull Scientific Barcode Software (2)
  • Spare Parts (4)

Recommended Accessories for Model: Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer

Top Batteries Purchased With Datamax-O'Neil J42-00-4J000U00

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil J42-00-4J000U00

Top Power Device Purchased With Datamax-O'Neil J42-00-4J000U00

Top Printer Accessories Purchased With Datamax-O'Neil J42-00-4J000U00

See All Printer Accessories for Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer >

Top Printhead Cleaner Purchased With Datamax-O'Neil J42-00-4J000U00

Top Seagull Scientific Barcode Software Purchased With Datamax-O'Neil J42-00-4J000U00

  • Seagull Software BTA-2 Software
    Seagull Software BTA-2 Software
    BarTender Automation: Application License + 2 Printers (includes Maintenance), Use (Part# BTA-PRT) To Add Additional Printers To License. Priced per printer with unlimited computers, not per computer with unlimited printers.
    Item on backorder — chat for lead time
    $1,415.00
    Add to Quote
  • Seagull Software BTP-1 Software
    Seagull Software BTP-1 Software
    BarTender Professional: Application License + 1 Printer (includes 1 Year of Standard Support & Maintenance), For additional printer license (Part# BTP-PRT). Priced per printer with unlimited computers, not per computer with unlimited printers. No Physical Box: Product code via Electronic Delivery.
    Item on backorder — chat for lead time
    $548.00
    Add to Quote

Top Spare Parts Purchased With Datamax-O'Neil J42-00-4J000U00

See All Spare Parts for Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer >
The Datamax-O'Neil J42-00-4J000U00 Barcode Label Printer is also known as DMX-E4204DTUS or J42-00-4J000U00.
