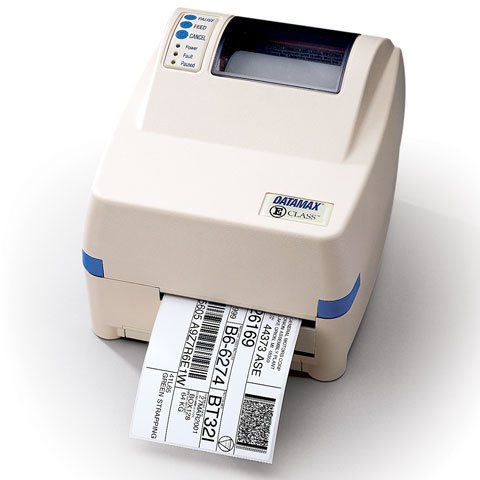

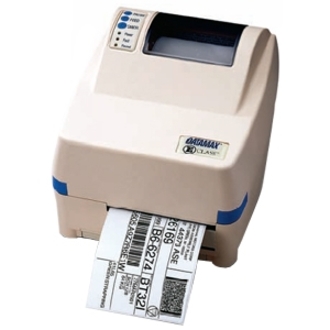

Datamax-O'Neil E-4204 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: J42-00-1J000U00
Model: E-4204
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal/Thermal Transfer printing, 203 dpi, 4 Inch Print Width, 4 ips Print Speed, Serial, Parallel and USB Interfaces and Autorange Power Supply
Explore all Datamax-O'Neil E-4204 Barcode Label Printers
Add to Quote
Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer
Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer
Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4204 Barcode Label Printer Model Overview

The E-4204 entry level printer performs in a wide range of environments from office & retail to light industrial locations. The E-4204 expands on the successful design elements of the Datamax-O-Neil E-Class and adds important capabilities designed to enhance the printer's performance while continuing to provide exceptional value. Available in either direct thermal or thermal transfer mode, the E-4204 is a versatile product designed for performance. The E-Class printers continue to feature a small footprint, sleek enclosure and enhanced printing capabilities to provide exceptional entry-level printers.
Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer Overview

The Datamax E-4204 can print a wide variety of labels ranging from small office shipping labels to compliance and general purpose product identification labels and tags. Medical and commercial laboratories, automobile service shops, walk-in shipping and mail centers, and inventory stock rooms are all typical examples of the types of users that can benefit from the E-4204. And with PDF417, Datamatrix, and MaxiCode two dimensional bar code capabilities, the E-4204 can print complex healthcare or transportation symbols and label formats.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
  • Continuous Form
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Label Width:
4.30"
Physical Characteristics
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Additional Information:
  • See-through media window
  • Flash upgradeable firmware
  • A unique case top for direct thermal application
  • Graphics Supported: .PCX, .BMP and .IMG files
  • External power supply: Specify appropriate power supply and cord when ordering
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
The Datamax-O'Neil J42-00-1J000U00 Barcode Label Printer is also known as DMX-E4204T or J42-00-1J000U00.
