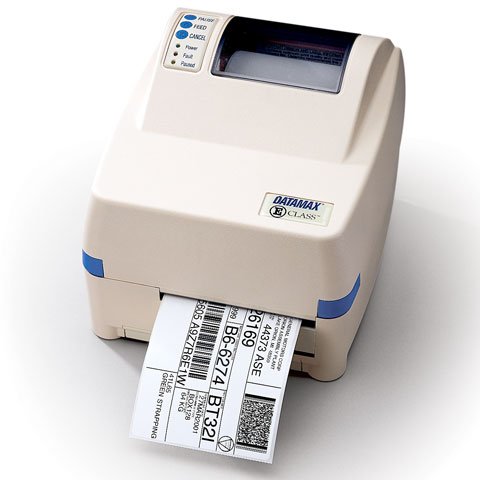

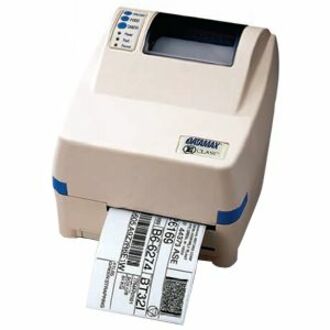

Datamax-O'Neil E-4204 – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: J22-00-4J100U00
Model: E-4204
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct Thermal, 203 dpi, 4" print width, 4 ips, serial and parallel interfaces and present sensor.
Explore all Datamax-O'Neil E-4204 Barcode Label Printers
Add to Quote
Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer
Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer
Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4204 Barcode Label Printer Model Overview

The E-4204 entry level printer performs in a wide range of environments from office & retail to light industrial locations. The E-4204 expands on the successful design elements of the Datamax-O-Neil E-Class and adds important capabilities designed to enhance the printer's performance while continuing to provide exceptional value. Available in either direct thermal or thermal transfer mode, the E-4204 is a versatile product designed for performance. The E-Class printers continue to feature a small footprint, sleek enclosure and enhanced printing capabilities to provide exceptional entry-level printers.
Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer Overview

The Datamax thermal barcode printer is designed to be the printer of choice when value, performance and features are the primary printer requirements. E-4204 printer is capable of printing a wide variety of labels in applications ranging from small office shipping requirements to compliance and general purpose product identification labels and tags. Hospitals, medical laboratories, automobile service shops, shipping/mail centers, and inventory stock rooms are all typical examples of the types of businesses that can benefit from using E-4204 printer. This printer is develop to suit virtually any low- to medium volume label printing application.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • Plessey
  • TLC 39
  • Micro PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Label
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Label Taken Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.30"
Label Core Size:
3"
Ribbon Core Size:
0.50"
Physical Characteristics
Height:
7.1"
Width:
8.8"
Depth:
10"
Miscellaneous
Additional Information:

Graphics Supported : .PCX, .BMP and .IMG files

Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil J22-00-4J100U00 Barcode Label Printer is also known as DMX-E4204DTPS or J22-00-4J100U00.
