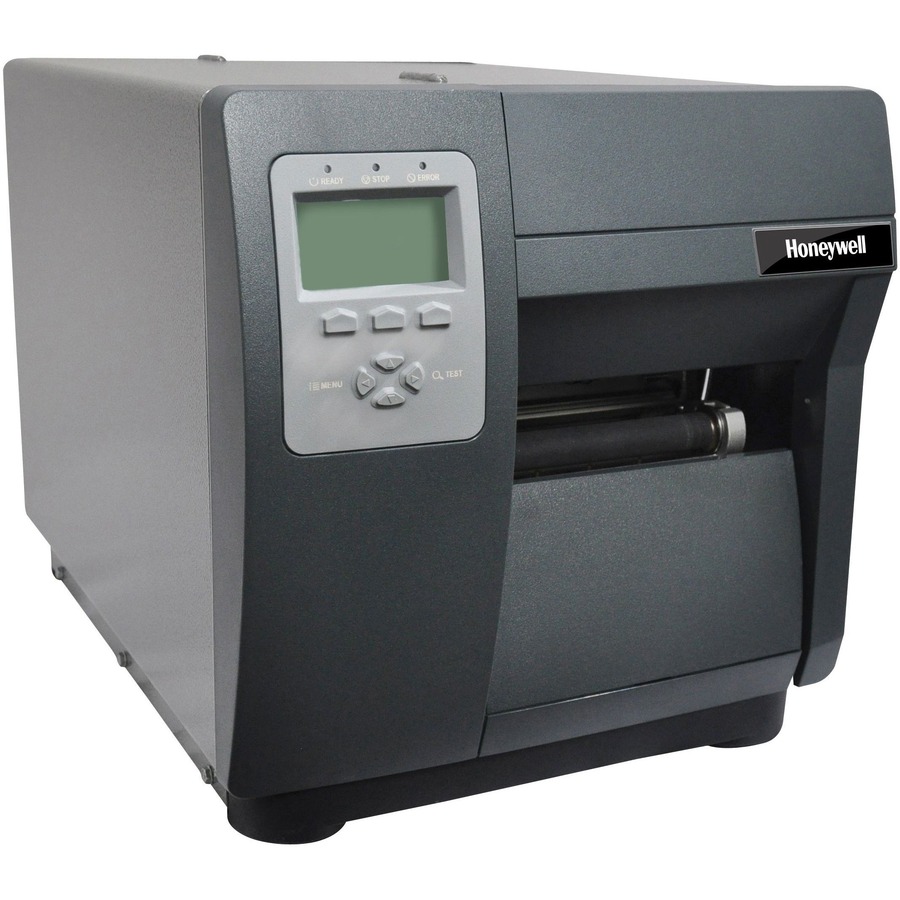

Datamax-O'Neil I13-00-48900007 Barcode Label Printer

Datamax-O'Neil I-4310e Mark II - I4310E MARK II TT 300 DPI 10 ips PEEL PRES REW Serial Parallel USB
$1,926.80
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Versatility that will increase productivity.

Datamax-O-Neil"s I-Class revolutionized the barcode printer industry with its award winning modular design, field installable options and rugged reliability. For the past several years, resellers have named the I-Class the "best channel product" in some of the industry"s largest third-party surveys. Now we"ve raised the bar even higher, with the redesigned I-4310e Mark II.

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features:
    • Vertical Printing
    • Horizontal Printing
    • Mirror Printing
    • Peel Facility
    • Rewind
  • Barcode Symbology Supported:
    • Code 3 of 5
    • UPC-A
    • UCP-E
    • Industrial 2 of 5
    • Code 11
    • EAN-8
    • HIBC
    • Plessey
    • POSTNET
    • UCC 128
    • EAN 128
    • Planet Code
    • FIM
    • USPS-4 State
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Macro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4310E
  • Product Name: I-Class Mark II I-4310E Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Black Mark
    • Ticket Stock
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-Class Mark II I-4310E Label Printer
    • Software CD
    • I-Class Mark II I-4310E Label Printer
    • Software CD
  • Certifications & Standards:
    • Unicode
    • UTF8

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4310e Mark II
Label Core 1.5 inches, 3 inches
Interface Options Parallel, USB, Serial
Included Features Rewinder, Peeler
Print Resolution 300 dpi
Print Method Thermal Transfer
Maximum Print Width 4.65, 4.16
Max Roll Outer Diameter 8
Print Speed 10
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
