Datamax-O'Neil I12-00-08400L07 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

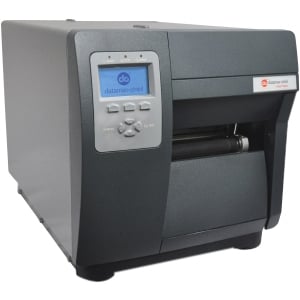

Datamax-O'Neil I-4212E - Direct thermal printing, 203 dpi, Ethernet, Serial, Parallel, and USB interfaces, Rewinder, Real-time clock. Cables sold separately. See accessories.
$1,688.00
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Versatility that will increase productivity.

Datamax-O-Neil's I-Class revolutionized the barcode printer industry with its award winning modular design, field installable options and rugged reliability. For the past several years, resellers have named the I-Class the "best channel product" in some of the industry's largest third-party surveys. Now we"ve raised the bar even higher, with the redesigned I-4212e.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Mirror Printing
    • Vertical Printing
    • Horizontal Printing
    • Rewind
  • Barcode Symbology Supported:
    • Code 3 of 5
    • UPC-A
    • UPC-E
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC 128
    • EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4212E
  • Product Name: I-Class Mark II I-4212E Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Black Mark
    • Ticket Stock
    • Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • I-Class Mark II I-4212E Label Printer
    • Software CD
    • I-Class Mark II I-4212E Label Printer
    • Software CD
  • Certifications & Standards:
    • Unicode
    • UTF8

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model I-4212e
Print Method Direct Thermal
Print Speed 12
Max Roll Outer Diameter 8
Interface Options Ethernet, Parallel, Serial, USB
Maximum Print Width 4.10, 4.09
Max Label Width 4.65
Print Resolution 203 dpi
Label Core 1.5 inches, 3 inches
Printer Type Industrial
Included Features Rewinder
Printer Mobility Not Mobile
Ribbon Core 1
