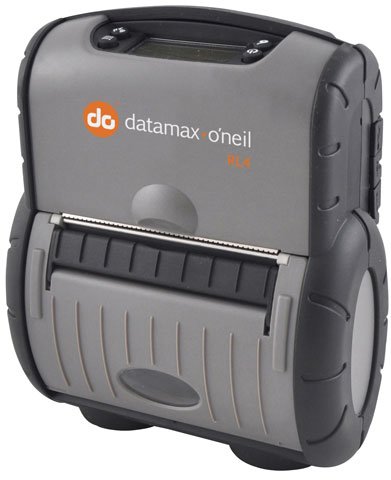

Datamax-O'Neil H42000-100 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil RL4 - Mobile Direct thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial, USB and 802.11b interfaces. Includes battery and belt loop. Charger and cables not included.
Endures even the most punishing environments

The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6 ft. (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.13"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • HIBC
    • Plessey
    • MSI
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • Telepen
    • UPS Maxi Code
    • FIM
    • USD-8
    • PDF-417
    • Aztec Code
    • QR Code
    • GS1 DataMatrix
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: RL4
  • Product Name: RL4 Label Printer

Physical Characteristics

  • Height: 7.9"
  • Width: 6.5"
  • Depth: 3.2"
  • Form Factor: Portable
  • Weight (Approximate): 2.16 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • RL4 Label Printer
    • Battery
    • Swivel Belt Clip
    • AC Power Adapter
    • Cigarette Lighter Adapter
    • Cleaning Cards
    • RL4 Label Printer
    • Battery
    • Swivel Belt Clip
    • AC Power Adapter
    • Cigarette Lighter Adapter
    • Cleaning Cards

Media Types & Handling

  • Media Type:
    • Black Mark
    • Fanfold
    • Roll Paper
  • Media Thickness: 6.50 mil
  • Media Sensor: Transmissive Media Sensor
  • Maximum Roll Diameter: 2.65"

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • IPL
    • XML
    • CPCL

Battery Information

  • Number of Batteries Supported: 1
  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Run Time: 16 Hour
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b

Power Description

  • Input Voltage: 14.4 V DC
  • Power Source: Battery

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 64 MB

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model RL4
Print Speed 4
Maximum Print Width 4.00
Label Core 0.75 inches
Print Method Direct Thermal
Interface Options USB, Wireless, Serial
Max Roll Outer Diameter 2.65
Max Label Width 4.125
Print Resolution 203 dpi
Printer Type Mobile
Printer Mobility Mobile
