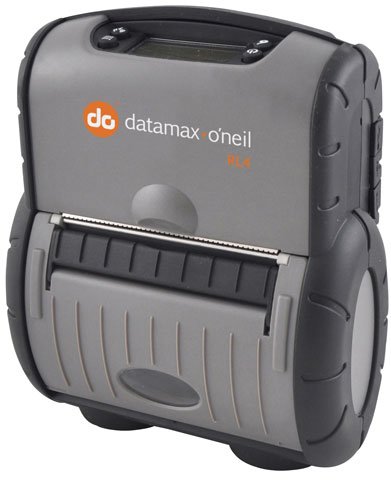

Datamax-O'Neil H41000-100 Portable Barcode Printer

Part Number: H41000-100
Model: RL4
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Mobile Direct Thermal printing, 4" print width, 203 dpi, 64MB RAM/16MB flash, LCD, RS-232 Serial, USB and Bluetooth interfaces. Includes battery and belt loop. Charger and cables not included.
Explore all Datamax-O'Neil RL4 Portable Barcode Printers
Add to Quote
Datamax-O'Neil H41000-100 Portable Barcode Printer
Datamax-O'Neil H41000-100 Portable Barcode Printer
Datamax-O'Neil H41000-100 Portable Barcode Printer
Datamax-O'Neil H41000-100 Portable Barcode Printer Datamax-O'Neil H41000-100 Portable Barcode Printer

Full specifications (PDF)

Datamax-O'Neil RL4 Portable Barcode Printer Model Overview

The Datamax-O-Neil RL4 is built to keep pace in a busy warehouse. Labels print quickly and accurately every time, even in cold environments. Downtime is reduced thanks to a large media roll capacity and a battery that stays charged for a full shift. With uncompromising standards, the RL4 endures even the most punishing environments, and passes the MIL-STD 810F drop testing requirements. The RL4 is so rugged it continues to print after 26 consecutive drops to concrete from 6ft (1.8m) even when tested at extreme temperature conditions. The versatile RL4 comes with a wide selection of charging and mounting accessories that allow it to be worn on the hip, mounted in a truck or even mounted and powered from a forklift operating system.
Datamax-O'Neil H41000-100 Portable Barcode Printer Overview

Datamax-O'Neil built its reputation on rugged and reliable portable receipt printers and has now used this expertise to design the industry's most rugged portable label printer. The RL4 is a durable 4-inch (102mm) direct thermal printer with a rugged design and reliable performance that will continue to operate long after other printers have failed. We're so confident in the quality and long term reliability of these printers that we include a 2-year warranty free of change. That's double what the competition offers

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.13"
Barcode Symbology Supported:
  • Code 3 of 9
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • HIBC
  • UCC
  • EAN 128
  • UPC-A
  • UPC-E
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • Telepen
  • UPS MaxiCode
  • FIM
  • USD-8
  • PDF-417
  • Aztec Code
  • QR Code
  • TLC 39
  • Data Matrix
  • Micro PDF-417
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Fanfold
  • Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.65"
Fonts & Emulation
Language Emulation:
  • DPL
  • ZPL II
  • CPCL
  • IPL
  • XML
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Run Time:
8 Hour
Physical Characteristics
Form Factor:
Portable
Height:
7.9"
Width:
6.5"
Depth:
3.2"
Weight (Approximate):
2.16 lb
Item Numbers
GTIN: 5711045225994
EAN: 5711045225994
UNSPSC: 45101512
