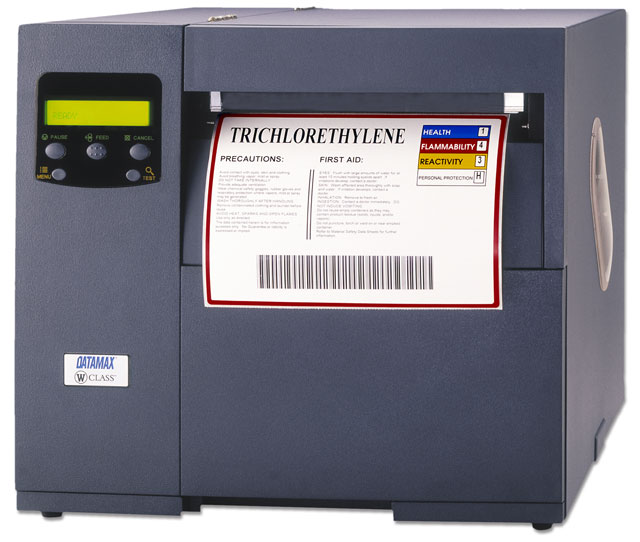

Datamax-O'Neil G83-00-21000007 Barcode Label Printer

Datamax-O'Neil W-8306 - Thermal transfer, 300 dpi, 6 ips, 8.5" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.
Please Call for Pricing
or to Purchase

Full specifications (PDF)

Quickly print high quality labels up to 8.5 inches wide-perfect for warehouse use!
The W-8306 is a perfect printer for applications that require large, durable labels. The W-8306 is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory, which provides accelerated first-label output and variable-data printing. Typical industries that use this printer are the lumber, chemical, automotive and clinical industries. All units ship with product documentation

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 8.53"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: W-8306
  • Product Name: W-8306 Thermal Label Printer
  • Product Line: W-Class

Physical Characteristics

  • Height: 14.8"
  • Width: 16.1"
  • Depth: 18.5"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 9"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standards:
    • UL
    • Canadian
    • European
    • Emissions Standard:
    • CE
    • FCC Class A
  • Additional Information:
    • Graphics Supported: .PCX, .BMP and .IMG files
    • Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 2 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Fonts & Emulation

  • Language Emulation: DPL

Full specifications (PDF)

Brand Datamax-O'Neil
Model W-8306
Label Core 3 inches
Printer Type Industrial
Maximum Print Width 8.53
Print Speed 6
Interface Options Parallel, Serial
Print Resolution 305 dpi
Print Method Thermal Transfer
Max Label Width 9.00
Max Roll Outer Diameter 8
Printer Mobility Not Mobile

Loading...
Loading...
Loading...
Loading...

The Datamax-O'Neil G83-00-21000007 is also known as DMX-W8306 or G830021000007 .
