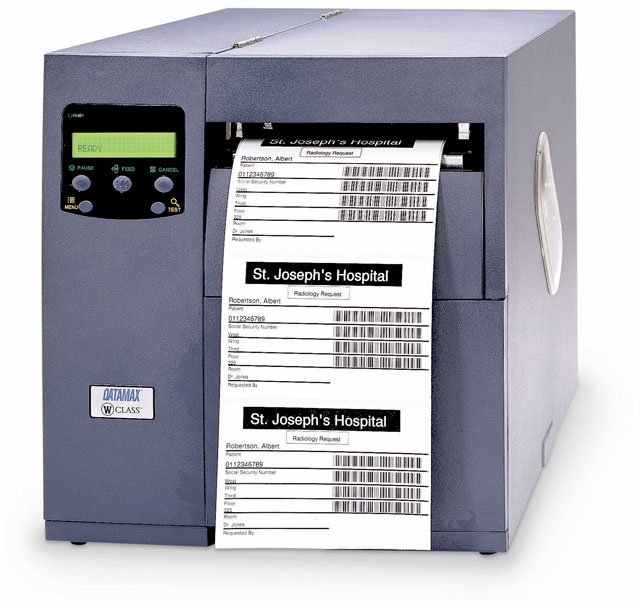

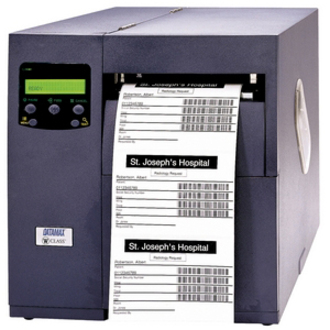

Datamax-O'Neil W-6308 – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: G63-00-21200007
Model: W-6308
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
305 dpi

Product Description:

  W-6308 Thermal Transfer Printer (300 dpi, 6 Inch Print Width, 8 ips Print Speed, Serial and Parallel Interfaces, Peel-Present and Rewind)
Explore all Datamax-O'Neil W-6308 Barcode Label Printers
Add to Quote
Datamax-O'Neil G63-00-21200007 Barcode Label Printer
Datamax-O'Neil G63-00-21200007 Barcode Label Printer
Datamax-O'Neil G63-00-21200007 Barcode Label Printer Datamax-O'Neil G63-00-21200007 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil W-6308 Barcode Label Printer Model Overview

The W-6308 features a tough all-metal chassis designed to withstand adverse work environments making it ideal for heavy-duty industrial applications. The W-6308 is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory, which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE, EAN-128 and AIAG labels. All units ship with product documentation.
Datamax-O'Neil G63-00-21200007 Barcode Label Printer Overview

The DMX-W-6308 features an all-metal construction designed to withstand adverse work environments. It is ideal for heavy-duty applications in the automotive, chemical, transportation and paper-processing industries. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor which provides accelerated first-label output and variable-data printing. It is an ideal printer for mission critical compliance labeling applications including ODETTE, EAN-128 and AIAG labels. The DMX-W-6308 is equipped with an adjustable-contrast LCD front-panel display that allows operators to select media, speed and temperature settings as well as network connectivity options.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.40"
Barcode Symbology Supported:
  • Code 39
  • Interleaved 2 of 5
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • LOGMARS
  • UPC-A
  • UPC-E
  • UPC 2 or 5 Digit Extension
  • EAN-8
  • EAN-13
  • EAN With 2 or 5 Digit Extension
  • UCC/EAN 128
  • Code 93
  • MSI PLESSEY
  • POSTNET
  • PDF-417
  • UPS MaxiCode
  • Data Matrix
  • Telepen
  • Code 128 MOD 43
Peel Facility:
Yes
Rewinder:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
2 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
6.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
DPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
14.8"
Width:
13.8"
Depth:
18.5"
Miscellaneous
Additional Information:
  • Alphanumeric font size: From .035" to .64"
  • Fonts and graphics can be printed in four directions: 0°, 90°,180° and 270°
  • Graphics Support: .PCX, .BMP and .IMG files
  • Modified IBM Code: Page 850
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emissions Standard:

  • CE
  • FCC Class A
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43212108
