Datamax-O'Neil W-6208 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: G62-00-21000Y07

Model: W-6208

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232)

Print Resolution

203 dpi

Product Description:

Thermal transfer & direct thermal, 203 dpi, 8 ips, 6.61" print width, ethernet, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.

Explore all Datamax-O'Neil W-6208 Barcode Label Printers

Add to Quote

Datamax-O'Neil G62-00-21000Y07 Barcode Label Printer

Overview

Full specifications (PDF)

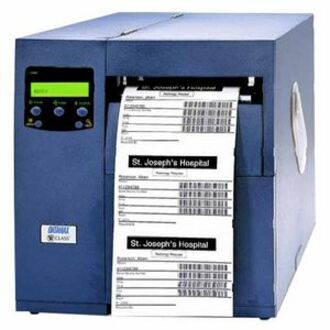

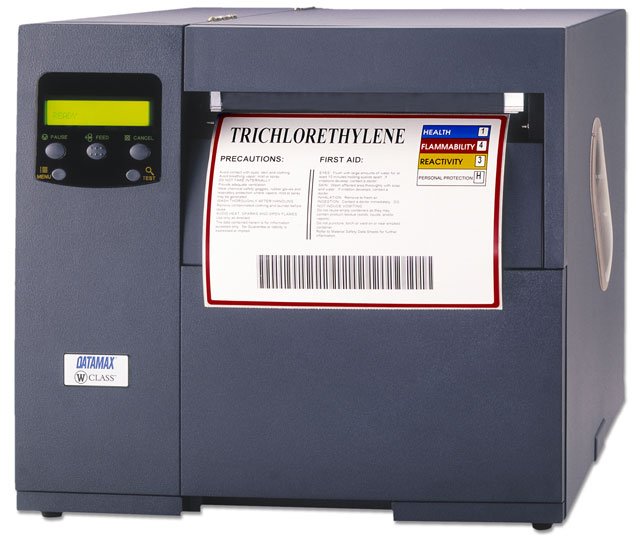

Datamax-O'Neil W-6208 Barcode Label Printer Model Overview

The W-6208 features an all-metal construction designed to withstand adverse work environments. This makes the W-6208 ideal for heavy-duty applications in the automotive, chemical, transportation and paper-processing industries. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory, which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE, EAN-128 and AIAG labels. All units ship with product documentation.

Datamax-O'Neil G62-00-21000Y07 Barcode Label Printer Overview

The DMX-W-6208 features an all-metal construction designed to withstand adverse work environments. With a 6.6" (168mm) print width, 203 dpi (8 dots/mm) and speeds up to 8" (203mm) per second makes it ideal for heavy-duty applications in the automotive, chemical, transportation and paper-processing industries. It is equipped with a 32-bit 90-MHz true multi-tasking Motorola ColdFire processor and 16MB of standard memory, which provides accelerated first-label output and variable-data printing. It is an ideal printer for compliance labeling applications including ODETTE, EAN-128 and AIAG labels. The W-6208 features DMXNet connectivity option which supports basic IPX (Novell) and IP protocols over various Ethernet frame types.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

6.62"

Barcode Symbology Supported:

Code 39
UPC-A
UPC-E
Interleaved 2 of 5
Code 128
EAN-8
EAN-13
HIBC
Codabar
Plessey
UPC 2 and 5 Digit Extension
Code 93
POSTNET
UCC/EAN 128
Telepen
UPS MaxiCode
FIM
PDF-417
USD-8
Data Matrix
QR Code
Aztec Code
TLC 39
Micro PDF-417

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

2 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Die-cut Label
Continuous Form
Perforated Label
Continuous Tag
Ticket Stock

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

6.70"

Maximum Label Length:

99.99"

Label Core Size:

Ribbon Core Size:

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

14.8"

Width:

13.8"

Depth:

18.5"

Miscellaneous

Additional Information:

Graphics Supported: .PCX, .BMP and .IMG files
Media Sensing: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.

Platform Supported:

Certifications & Standards:

Safety Standards:
