Datamax-O'Neil EP3-00-1J000Q00 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

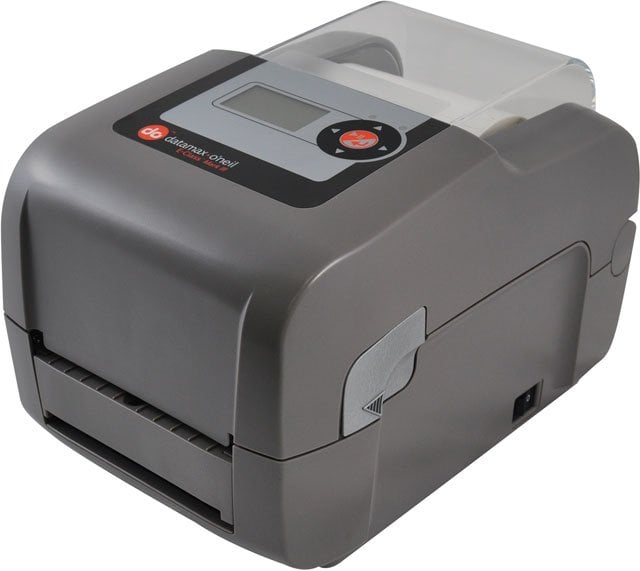

Datamax-O'Neil E-4305P - E4305P TT WIRELESS 300DIT 5 ips 64MB FL Serial Parallel USB LAN Real-time clock
Rugged construction helps the E-4305P thrive where other printers fail

The Datamax-O-Neil E-4305P is a 300 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4305P features a 5 inches/sec speed and 4.16 print width plus a choice of USB, Serial, Parallel, Ethernet, 802.11a/b/g wireless and Bluetooth interfaces. The Datamax-O-Neil E-4305P's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4305P
  • Product Name: E-Class E-4305P Mark III Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Roll Paper
    • Gap
    • Black Bar
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLE
    • PLI
    • PLZ

Memory

  • Standard Memory: 32 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Power Source: Battery

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4305P
Maximum Print Width 4.16
Interface Options USB, Wireless, Serial, Parallel, USB Host, Ethernet
Max Roll Outer Diameter 5
Printer Type Desktop
Print Speed 5
Label Core 1 inch
Print Resolution 300 dpi
Print Method Thermal Transfer
Max Label Width 4.40
Printer Mobility Not Mobile
Ribbon Core 0.5, 1
