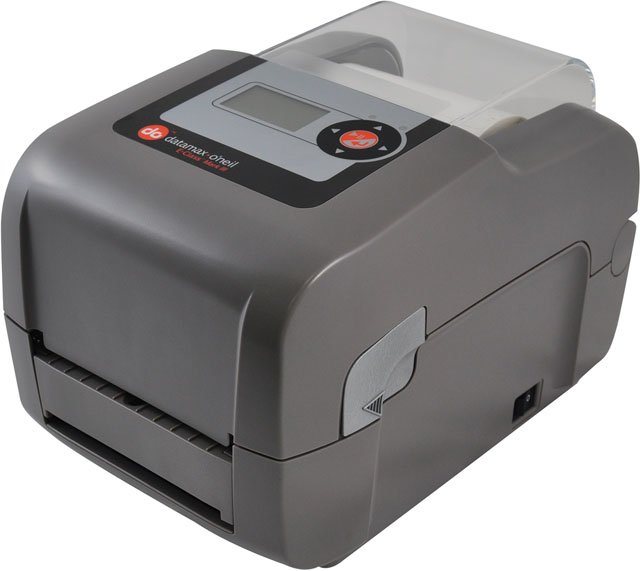

Datamax-O'Neil EP3-00-1J000P00 Barcode Printer

4.0

(1 reviews)

Datamax-O'Neil E-4305P - E4205P PRO 300 DPI 5 ips 64MB FL Thermal transfer Serial Parallel USB LAN HOST Real-time clock

$596.30

In Stock:

Protect Your Product

Service Contracts
+ 133.50

Service Contract - 3 year
+ 187.00

Your satisfaction is guaranteed!

We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.

+ Add to Quote

Rugged construction helps the E-4305P thrive where other printers fail

The Datamax-O-Neil E-4305P is a 300 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4305P features a 5 inches/sec speed and 4.16 print width plus a choice of USB, Serial, Parallel, Ethernet, 802.11a/b/g wireless and Bluetooth interfaces. The Datamax-O-Neil E-4305P's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

Maximum Mono Print Speed: 5 in/s
Maximum Print Resolution: 300 dpi
Print Color: Monochrome
Maximum Print Width: 4.25"
Recommended Use: Label Print
Features: Real Time Clock
Barcode Symbology Supported:
- Code 3 of 9
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Addendums
- Code 93
- POSTNET
- UCC/EAN 128
- K-Mart NON EDI
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- Data Matrix
- QR Code
- Aztec Code
- GS1 DataBar
- TCIF
- TLC 39
- Micro PDF-417

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Datamax
Manufacturer: Datamax-O'Neil
Product Model: E-4305P
Product Name: E-Class E-4305P Mark III Label Printer
Product Line: E-Class

Physical Characteristics

Height: 7.4"
Width: 8"
Depth: 11.1"
Form Factor: Desktop
Weight (Approximate): 5.29 lb
Color: Warm Gray

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.40"
Media Type:
- Continuous Label
- Fanfold
- Roll Paper
- Gap
- Black Bar
- Notch
Media Thickness: 10 mil
Media Sensor: Adjustable Media Sensor
Ribbon Core Size: 1"
Maximum Roll Diameter: 5"

Fonts & Emulation

Language Emulation:
- PLB
- PLE
- PLI
- PLZ

Memory

Standard Memory: 32 MB
Memory Technology: DRAM
Flash Memory: 64 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Display & Graphics

Display Screen Type: LCD

Other

Platform Supported: PC

Warranty

Limited Warranty: 1 Year

Power Description

Power Source: Battery

Full specifications (PDF)

See all Datamax-O'Neil E-4305P options »

Brand	Datamax-O'Neil
Model	E-4305P
Print Method	Thermal Transfer
Max Label Width	4.40
Maximum Print Width	4.16
Interface Options	Ethernet, USB, Serial, Parallel, USB Host
Printer Type	Desktop
Max Roll Outer Diameter	5
Print Speed	5
Label Core	1 inch
Print Resolution	300 dpi
Printer Mobility	Not Mobile
Ribbon Core	0.5, 1

Customer Review Summary

4.0

(based on 1 reviews)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

4.0

Versatile Printer for the Money

By Tim Ryen

from Brooks, OR

3/17/2014

Pros

Moveable Sensor
Somewhat portable
Up To 4" Ribbon Width
Versatile

Cons

Best Uses

Print Tags Or Stickers

Comments about Datamax-O'Neil E-4305P EP3-00-1J000P00:

Keep in mind: Cannot be equipped with both the expanded media size enclosure and the battery pack at the same time.

Displaying reviews 1-1

Add Reviews to your site

Recommended Accessories for Model: Datamax-O'Neil E-4305P Printer

	Datamax-O'Neil DMXREW1 (DPO78-2394-01) External Rewinder, up to 4.5 inch label width. Replacement for (Part# 78-2391-01) In Stock: Ships Same Day	$470.60 + Add to Quote
	Datamax-O'Neil (OPT78-2907-01) E-CLASS MARK III BATTERY PACK MOBILE POWER UNIT In Stock: Ships Same Day	$480.90 + Add to Quote
	Datamax-O'Neil Platen Roller Assembly (ROL78-2867-01) KIT E-CLASS MARK III In Stock: Ships Same Day	$31.20 + Add to Quote
	Datamax-O'Neil (DPO32-2300-01) Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers. In Stock: Ships Same Day	$42.10 + Add to Quote
	Datamax-O'Neil (OPT78-2872-01) External media supply (10" diameter max roll) In Stock: Ships Same Day	$78.00 + Add to Quote

All Accessories for the Datamax-O'Neil E-4305P »

Recommended Labels for Model: Datamax-O'Neil E-4305P Printer

	Datamax-O'Neil Label (350977) 1.5" x 1" Direct thermal paper label. 1375 labels/roll, 16 roll case. Also available as a single roll (Part# 350977-R). In Stock: Ships Same Day	$132.80 + Add to Quote
	Datamax-O'Neil Label (350924) 4" x 2" Direct thermal paper label. 800 labels/roll, 8 roll case. Also available as a single roll (Part# 350924-R). In Stock: Ships Same Day	$131.90 + Add to Quote
	Datamax-O'Neil Duratran II (451984) 4" x 2.875" Thermal transfer kim-syn label. 400 labels/roll, 8 roll case. In Stock: Ships Same Day	$150.40 + Add to Quote
	Datamax-O'Neil Label (350970) 4" x 6" Direct thermal paper label. 250 labels/roll, 8 roll case. Also available as a single roll (Part# 350970-R). In Stock: Ships Same Day	$86.70 + Add to Quote
	Datamax-O'Neil Label (453084) 4" x 2.875" Thermal transfer polyester label. 500 labels/roll, 8 roll case. In Stock: Ships Same Day	$372.80 + Add to Quote

All Labels for the Datamax-O'Neil E-4305P »

Recommended Ribbons for Model: Datamax-O'Neil E-4305P Printer

	Datamax-O'Neil GPR Plus Premium Wax (226457) 4.33" x 360' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 24, Core Size: 0.5", Available as a single roll (226457-R) In Stock: Ships Same Day	$234.20 + Add to Quote
	Datamax-O'Neil IQWax+ (IQWAX+-110300) 4.33" x 984' Black Wax Ribbon. 1" core size. Compatible with E-Class Mark III Printers. 6 ribbon case. Used with paper labels. Also available as a single roll (Part# IQWAX+-110300-R). In Stock: Ships Same Day	$71.40 + Add to Quote
	Datamax-O'Neil Ribbon (IQRES-89300) 3.5" x 984' Black Resin Ribbon. Case of 24 ribbon rolls. Used with polyester labels. Ships in 3-5 Days	$1,634.50 + Add to Quote
	Datamax-O'Neil Ribbon (IQRES-64300) 2.5" x 984" RESIN RIBBON 48 ribbon case. Also available as a single roll (Part# IQRES-64300-R). Ships in 3-5 Days	$1,172.00 + Add to Quote
	Datamax-O'Neil Ribbon (IQRES-110300) IQRES RESIN RIBBON, 4.33" x 984', 1" CORE, 48 rolls/case. Also available as a single roll (Part# IQRES-110300-R). Ships in 3-5 Days	$2,094.70 + Add to Quote

All Ribbons for the Datamax-O'Neil E-4305P »

Recommended Printheads for Model: Datamax-O'Neil E-4305P Printer

Datamax-O'Neil E-Class Mark II & Mark III (PHD20-2268-01)

Replacement Printhead Kit, 300 dpi, Compatible Printer Model E-Class Mark II & Mark III

Ships in 3-5 Days

$151.50
+ Add to Quote

All Printheads for the Datamax-O'Neil E-4305P »

Protect Your Product

	Datamax-O'Neil Service Contracts (EP3-WS-WEP0E0CC) E-4305P 300 dpi, Comprehensive, 5 day turn, 1 year, extension, unit less than 5 years old Ships in 3-5 Days	$133.50 + Add to Quote
	Datamax-O'Neil Service Contract - 3 year (EP3-WS-W3P0E0C3) Extended Comprehensive Warranty for E-4305P Ships in 3-5 Days	$187.00 + Add to Quote

All Service Contracts for the Datamax-O'Neil E-4305P »

Questions?

1-800-351-9962

Why BarcodesInc?

Best Value We work hard to deliver a solution that fits your budget.
Unmatched Customer Service A dedicated Account Manager is there to support you.
Deepest Technical Expertise Our team has decades of experience in all applications.

The Datamax-O'Neil EP3-00-1J000P00 is also known as DMX-E4305PTTDT or EP3001J000P00 .
