Datamax-O'Neil E-4206P – Barcode Label Printer – 203 dpi

Part Number: EL2-00-0J000P00
Model: E-4206P
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Ethernet, Parallel, Serial (RS-232), USB, USB Host
Print Resolution
203 dpi
Max Print Width
4.25 inch

Product Description:

  E4206P+ 203DPI 6IPS 64MB FL DT SER PAR USB LAN USBHOST RTC

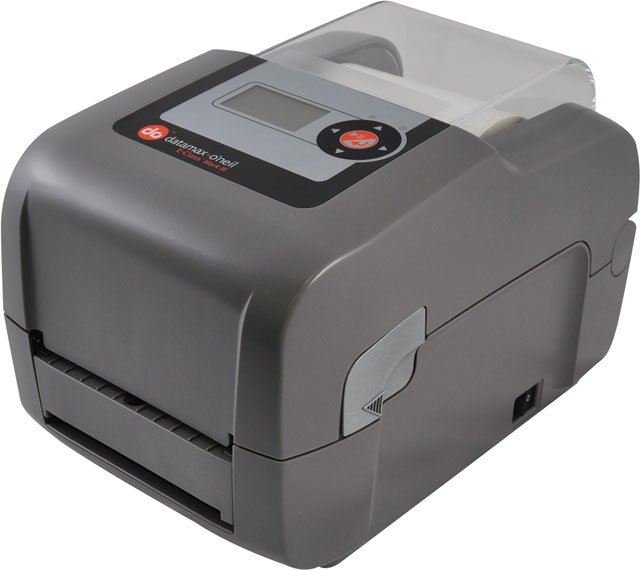

Honeywell E-4206P Barcode Label Printer Model Overview

The Datamax-O'Neil E-Class Mark III: E-4206P Printer is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective Datamax-O'Neil E-Class Mark III: E-4206P Printer features a 6 inches/sec speed and 4.25 print width plus a choice of USB, Serial, Parallel, Ethernet, 802.11a/b/g wireless and Bluetooth interfaces. The Datamax-O'Neil E-Class Mark III: E-4206P Printer's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.
Datamax-O'Neil EL2-00-0J000P00 Barcode Label Printer Overview

3 Dimensions of Value

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Code 128
  • Interleaved 2 of 5
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • Data Matrix
  • Aztec Code
  • QR Code
  • GS1 DataBar
  • TCIF
  • TLC 39
  • Micro PDF-417
  • HIBCC
  • EAN/JAN-13
  • EAN/JAN-8
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Audible Alert
  • Mirror Printing
  • Vertical Printing
Print Technology:
Direct Thermal
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Memory Card Slot:
Yes
Memory Card Supported:
SD
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Gap
  • Notch
  • Black Bar
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Adjustable Media Sensor
  • Label Taken Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLE
  • PLI
  • PLZ
  • ZPL
  • EPL
  • DPL
Power Description
Power Source:
  • Power Adapter
  • Battery
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.25 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • FCC Class A
  • EN 61000-3-2
  • EN 61000-3-3
  • EN55024
  • EN55022 Class A
  • EN 61000-4-4
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-6
  • CCC
  • EN 61000-4-5
  • EN 61000-4-11
  • FCC CFR47 Part 15
  • EN 61000-4-8
  • UL 60950-1
  • CSA C22.2 No. 60950-1-03
  • GOST-R
  • ISO 9001:2008
  • EN 45014
Country of Origin:
United Kingdom
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
