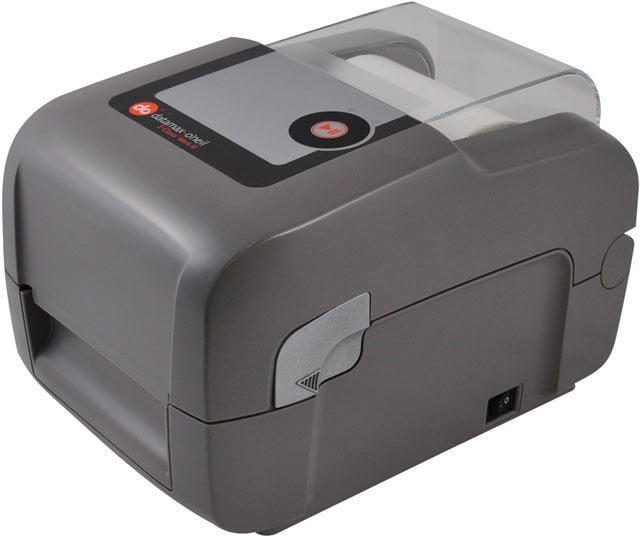

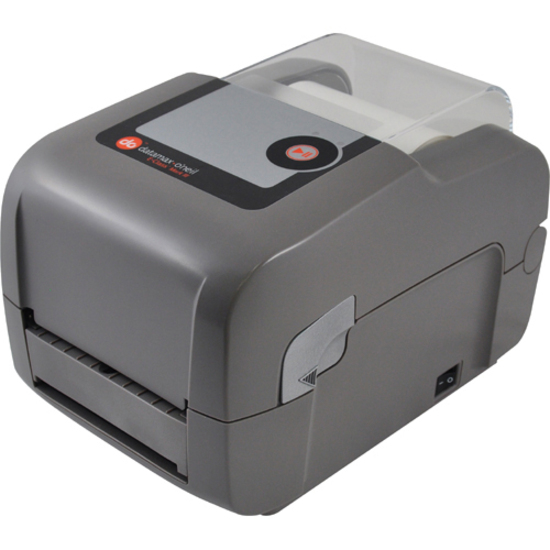

Datamax-O'Neil EB3-00-0J000B00 Barcode Printer

Datamax-O'Neil E-4304B - Direct thermal only, Serial and USB interfaces, 300 dpi, 4.25" print width, 4"/sec print speed, 16MB DRAM/64MB Flash, DPL, tear bar, LED/Button UI, US power cord.
Rugged construction helps the E-4304B thrive where other printers fail

The Datamax-O-Neil E-4304B is a 300 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4304B features a 4 inches/sec speed and 4.16 print width plus a choice of USB and Serial interfaces. The Datamax-O-Neil E-4304B's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-E
    • UPC-A
    • Plessey
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • FIM
    • UPS Maxi Code
    • Telepen
    • PDF-417
    • Data Matrix
    • Aztec Code
    • QR Code
    • TLC 39
    • GS1 DataBar
    • Micro PDF-417
    • TCIF
    • UPC 2 and 5 Digit Addendums

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4304B
  • Product Name: E-Class Mark III E-4304B Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.25 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Tag
    • Gap
    • Black Bar
    • Notch
    • Perforated Label
  • Media Thickness: 10 mil
  • Media Sensor: Adjustable Media Sensor
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • PLZ
    • PLB
    • PLE
    • PLI
    • DPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4304B
Max Label Width 4.40, 4.30
Print Speed 4
Maximum Print Width 4.16, 4.12
Print Resolution 305 dpi, 300 dpi
Label Core 1 inch
Print Method Direct Thermal
Interface Options Serial, USB
Printer Type Desktop
Max Roll Outer Diameter 5
Printer Mobility Not Mobile
Ribbon Core 1

Recommended Accessories for Model: Datamax-O'Neil E-4304B Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (ips). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
In Stock: Ships Same Day
$470.60
+ Add to Quote
Datamax-O'Neil (OPT78-2907-01)
E-CLASS MARK III BATTERY PACK MOBILE POWER UNIT
In Stock: Ships Same Day
$480.40
+ Add to Quote
Datamax-O'Neil Platen Roller Assembly (ROL78-2867-01)
KIT E-CLASS MARK III
In Stock: Ships Same Day
$36.50
+ Add to Quote
Datamax-O'Neil (DPO32-2300-01)
Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.
In Stock: Ships Same Day
$42.10
+ Add to Quote
Datamax-O'Neil (DPO78-2856-01)
Auto-switching power supply
In Stock: Ships Same Day
$106.80
+ Add to Quote
Recommended Labels for Model: Datamax-O'Neil E-4304B Printer
Datamax-O'Neil Label (350931)
3.5" x 1" Direct thermal paper label. 1,375 labels/roll, 8 roll case.
In Stock: Ships Same Day
$117.30
+ Add to Quote
Datamax-O'Neil Label (350924)
4" x 2" Direct thermal paper label. 800 labels/roll, 8 roll case. Also available as a single roll (Part# 350924-R).
In Stock: Ships Same Day
$117.50
+ Add to Quote
Datamax-O'Neil Label (350970)
4" x 6" Direct thermal paper label. 250 labels/roll, 8 roll case. Also available as a single roll (Part# 350970-R).
In Stock: Ships Same Day
$77.30
+ Add to Quote
Datamax-O'Neil Duratran II (451984)
4" x 2.875" Thermal transfer kim-syn label. 400 labels/roll, 8 roll case.
In Stock: Ships Same Day
$134.10
+ Add to Quote
Datamax-O'Neil Label (453084)
4" x 2.875" Thermal transfer polyester label. 500 labels/roll, 8 roll case.
In Stock: Ships Same Day
$357.20
+ Add to Quote
Recommended Ribbons for Model: Datamax-O'Neil E-4304B Printer
Datamax-O'Neil IQWax+ (IQWAX+-110300)
4.33" x 984' Black Wax Ribbon. 1" core size. Compatible with E-Class Mark III Printers. 6 ribbon case. Used with paper labels. Also available as a single roll (Part# IQWAX+-110300-R).
Ships in 3-5 Days
$66.70
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-89300)
3.5" x 984' Black Resin Ribbon. Case of 24 ribbon rolls. Used with polyester labels.
Ships in 3-5 Days
$1,634.50
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-64300)
2.5" x 984" RESIN RIBBON 48 ribbon case. Also available as a single roll (Part# IQRES-64300-R).
Ships in 3-5 Days
$1,095.40
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-110300)
IQRES RESIN RIBBON, 4.33" x 984', 1" CORE, 48 rolls/case. Also available as a single roll (Part# IQRES-110300-R).
Ships in 3-5 Days
$1,853.80
+ Add to Quote
Datamax-O'Neil Ribbon (IQMID-89300)
3.5" x 984' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 12, Core Size: 1"
Ships in 3-5 Days
$177.40
+ Add to Quote
Recommended Printheads for Model: Datamax-O'Neil E-4304B Printer
Datamax-O'Neil E-Class Mark II & Mark III (PHD20-2268-01)
Replacement Printhead Kit, Honeywell-Datamax Spare Part, 300 dpi, Compatible with Printer Models E-Class Mark II & Mark III.
Ships in 3-5 Days
$142.20
+ Add to Quote

The Datamax-O'Neil EB3-00-0J000B00 is also known as DMX-E4304BDT or EB3000J000B00 .
