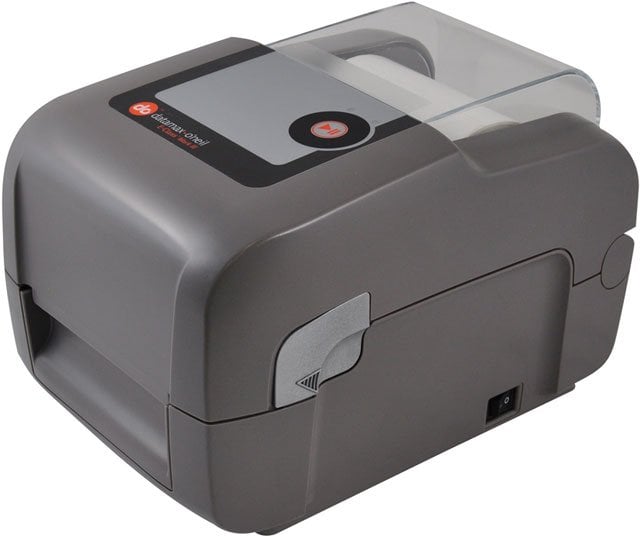

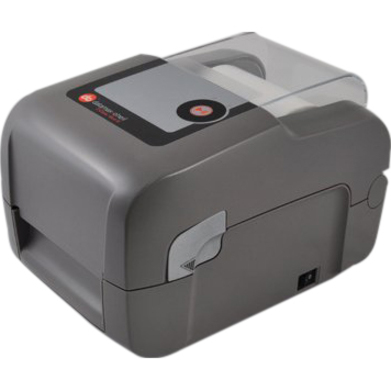

Datamax-O'Neil E-4304B – Barcode Label Printer – 300 dpi, 305 dpi – Direct Thermal

Part Number: EB3-00-0H000B00
Model: E-4304B
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  E4304B 300DPI 4IPS DT DPL 64MB FLSH/16MB DRAM SER USB
Explore all Datamax-O'Neil E-4304B Barcode Label Printers
Add to Quote
Datamax-O'Neil EB3-00-0H000B00 Barcode Label Printer
Datamax-O'Neil EB3-00-0H000B00 Barcode Label Printer
Datamax-O'Neil EB3-00-0H000B00 Barcode Label Printer Datamax-O'Neil EB3-00-0H000B00 Barcode Label Printer
Full specifications (PDF)

Datamax-O'Neil E-4304B Barcode Label Printer Model Overview

The Datamax-O'Neil E-Class Mark III: E-4304B Printer is a 300 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective Datamax-O'Neil E-Class Mark III: E-4304B Printer features a 4 inches/sec speed and 4.16 print width plus a choice of USB and Serial interfaces. The Datamax-O'Neil E-Class Mark III: E-4304B Printer's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.
Datamax-O'Neil EB3-00-0H000B00 Barcode Label Printer Overview
3 Dimensions of Value

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HBIC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • TLC 39
  • Micro PDF-417
  • HIBCC
  • EAN/JAN-13
  • EAN/JAN-8
Application/Usage:
Desktop
Features:
Mirror Printing
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
  • Perforated Label
  • Fanfold
  • Tag Stock
  • Tag
  • Gap
  • Notch
  • Black Bar
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Label Width:
4.40"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLE
  • PLI
  • PLZ
Power Description
Power Source:
  • Battery
  • Power Adapter
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.25 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
