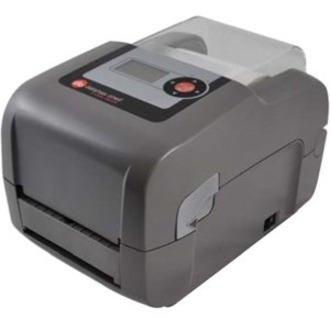

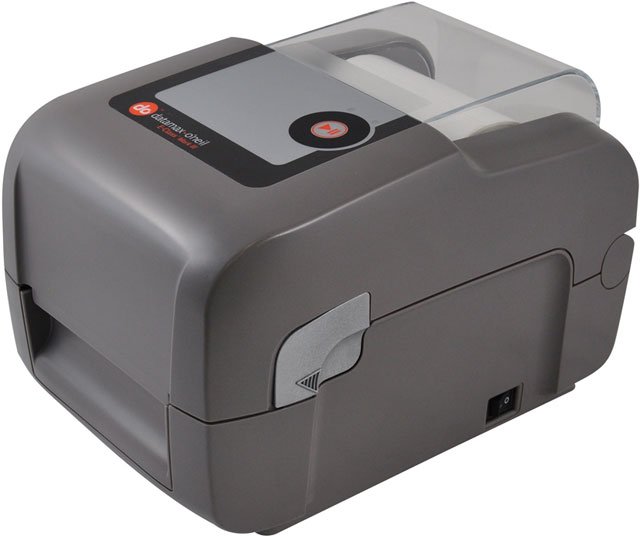

Datamax-O'Neil E-4204B – Barcode Label Printer – Direct Thermal

Part Number: EB2-00-0J005B00
Model: E-4204B
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printing Technology
Direct Thermal

Product Description:

  Desktop Printer, Datamax-O-Neil E-4204B, Direct Thermal, 4-inch Print Width, 203 DPI, 64MB Flash, Serial, USB
Explore all Honeywell E-4204B Barcode Label Printers
Add to Quote
Datamax-O'Neil EB2-00-0J005B00 Barcode Label Printer
Datamax-O'Neil EB2-00-0J005B00 Barcode Label Printer
Datamax-O'Neil EB2-00-0J005B00 Barcode Label Printer Datamax-O'Neil EB2-00-0J005B00 Barcode Label Printer
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • TLC 39
  • Micro PDF-417
Application/Usage:
Desktop
Features:
Tear Bar
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LED
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Tag
  • Perforated Label
  • Gap
  • Black Bar
  • Notch
Media Sensor:
Adjustable Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • DPL
  • PLB
  • PLE
  • PLI
  • PLZ
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.25 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
GTIN: 0014501735484, 0650361464159, 0783555093443, 0783555136249
UPC: 014501735484, 650361464159, 783555093443, 783555136249
EAN: 0014501735484, 0650361464159, 0783555093443, 0783555136249
UNSPSC: 45101512
