Datamax-O'Neil E-4204B – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: EB2-00-0J000B00
Model: E-4204B
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct thermal only, Serial and USB interfaces, 203 dpi, 4.25" print width, 4"/sec print speed, 16MB DRAM/64MB Flash, DPL, tear bar, LED/Button UI, US power cord.

Honeywell E-4204B Barcode Label Printer Model Overview

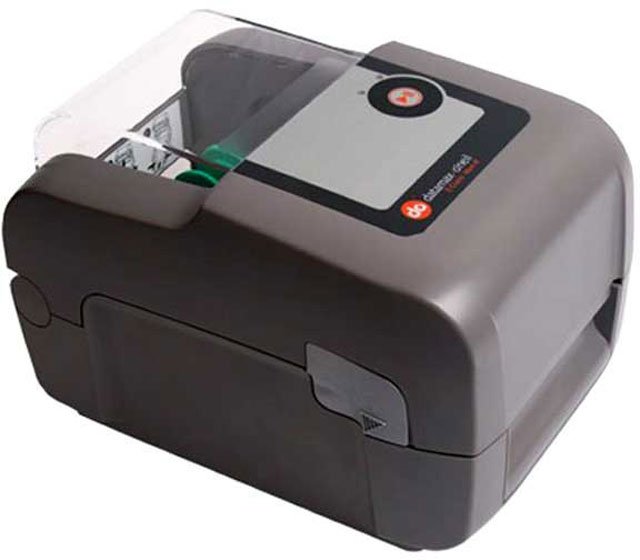

The Datamax-O'Neil E-Class Mark III: E-4204B Printer is a 203 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective Datamax-O'Neil E-Class Mark III: E-4204B Printer features a 4 inches/sec speed and 4.25 print width plus a choice of USB and Serial interfaces. The Datamax-O'Neil E-Class Mark III: E-4204B Printer's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.
Datamax-O'Neil EB2-00-0J000B00 Barcode Label Printer Overview

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate. We've made the E-Class Mark III easy to use with quick loading media and an interactive LCD screen. Users will also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III's larger media and ribbon roll capacity. The E-Class Mark III is one of the best values on the market. It is competitively priced with a proven design and reliable performance that will continue to operate long after other printers have failed.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • QR Code
  • Data Matrix
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • TLC 39
  • Micro PDF-417
Application/Usage:
Desktop
Features:
Tear Bar
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LED
Media Types & Handling
Media Type:
  • Continuous Label
  • Fanfold
  • Tag
  • Perforated Label
  • Gap
  • Black Bar
  • Notch
Media Sensor:
Adjustable Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.40"
Fonts & Emulation
Language Emulation:
  • DPL
  • PLB
  • PLI
  • PLZ
Physical Characteristics
Color Family:
Gray
Product Color:
Warm Gray
Height:
7.4"
Width:
8"
Depth:
11.1"
Weight (Approximate):
5.29 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0650015127768, 0778890008009
UPC: 650015127768, 778890008009
EAN: 0650015127768, 0778890008009
UNSPSC: 45101512
