Datamax-O'Neil EA3-00-1JP00A00 Barcode Label Printer

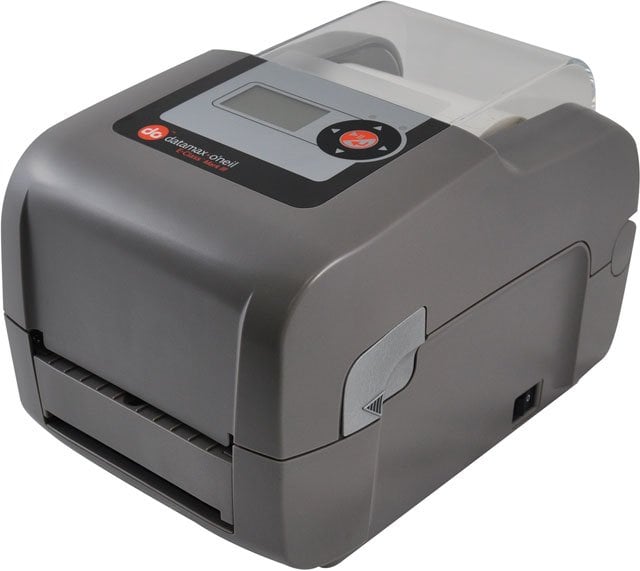

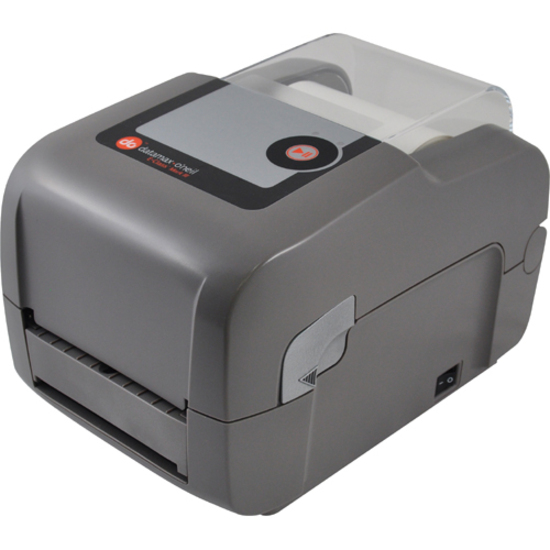

Datamax-O'Neil E-4305A - E4305A 300 DPI TT PEEL
Rugged construction helps the E-4305A thrive where other printers fail

The Datamax-O-Neil E-4305A is a 300 dpi printer designed for a wide variety of industries and applications. The reliable and cost-effective E-4305A features a 5 inches/sec speed and 4.16 print width plus a choice of USB, Serial, Parallel and Ethernet interfaces. The Datamax-O-Neil E-4305A's large roll capacity and quick-loading media prevents lengthy downtime and enables fast performance.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Code 128
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • K-Mart NON EDI
    • Telepen
    • UPS Maxi Code
    • PDF-417
    • QR Code
    • Data Matrix
    • Aztec Code
    • GS1 DataBar
    • TCIF
    • TLC 39
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: E-4305A
  • Product Name: E-Class Mark III E-4305A Label Printer
  • Product Line: E-Class

Physical Characteristics

  • Height: 7.4"
  • Width: 8"
  • Depth: 11.1"
  • Form Factor: Desktop
  • Weight (Approximate): 5.29 lb
  • Color: Warm Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Fanfold
    • Tag
    • Perforated Label
    • Black Bar
    • Gap
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor:
    • Adjustable Media Sensor
    • Label Taken Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • DPL
    • PLI
    • PLE
    • PLB
    • PLZ

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LED

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model E-4305A
Max Label Width 4.40
Max Roll Outer Diameter 5
Interface Options USB, Parallel, Serial, Ethernet
Maximum Print Width 4.16
Print Method Thermal Transfer
Print Speed 5
Label Core 1 inch
Printer Type Desktop
Print Resolution 300 dpi
Included Features Peeler
Printer Mobility Not Mobile
Ribbon Core 0.5, 1

Recommended Accessories for Model: Datamax-O'Neil E-4305A Barcode Label Printer
Datamax-O'Neil DMXREW1 (DPO78-2394-01)
The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (ips). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
Temporarily out of stock; available to order

$475.10
+ Add to Quote
Datamax-O'Neil Label Rewinder (DPO78-2394-02)
EXTERNAL REWINDER, 220VOLT, 4" PRINTERS
In Stock
$475.10
+ Add to Quote
Datamax-O'Neil (DPO32-2300-01)
Cable, Serial, 9-pin, PC to Printer, Compatible with All Datamax-O'Neil Printers.
In Stock
$43.92
+ Add to Quote
Datamax-O'Neil (OPT78-2835-01)
E-CLASS MARK III CUTTER KIT GUILLOTINE with SENSOR
In Stock
$174.70
+ Add to Quote
Datamax-O'Neil Platen Roller Assembly (ROL78-2867-01)
KIT E-CLASS MARK III
Temporarily out of stock; available to order
$35.24
+ Add to Quote
Recommended Labels for Model: Datamax-O'Neil E-4305A Barcode Label Printer
Datamax-O'Neil Label (DMJ-188100N14)
1.875" x 1" Thermal transfer glossy polypropylene Rat Tail Jewelry label. Not perforated. 1,750 labels/roll, 2 roll case.
Ships within 3 to 5 business days
$62.94
+ Add to Quote
Intermec Parts (E28342)
HONEYWELL-DATAMAX PIONEER MEDIA, CONSUMABLES, 4"X 6", Duratherm II, DT, UNCOATED PAPER LABEL, 1.5"CORE, 5" outer diameter, FOR megapixel PRINTERS, 480 LPR, 4 RPC, single case
Ships within 3 to 5 business days
$176.51
+ Add to Quote
Honeywell Datamax Pioneer Media (E28341)
-DATAMAX PIONEER MEDIA, CONSUMABLES, 4"X 4", Duratherm II, DT, UNCOATED PAPER LABEL, 1.5"CORE, 5" outer diameter, FOR megapixel PRINTERS, 715 LPR, 4 RPC, single case
Ships within 3 to 5 business days
$173.14
+ Add to Quote
Intermec Parts (E28340)
Duratherm II Multipurpose Label - 4" x 2" Length - Permanent Adhesive - Rectangle - Direct thermal
Ships within 3 to 5 business days
$44.14
+ Add to Quote
Intermec Parts (E28232)
CONSUMABLES, Duratherm III DIRECT Thermal paper LABEL (FORMERLY GREATLABEL DTL), 4.1" x 1.2", WITH Perforated, 1" CORE, 5" outer diameter, 2294 labels/roll, 4 roll case
Temporarily out of stock; available to order
$179.68
+ Add to Quote
Recommended Ribbons for Model: Datamax-O'Neil E-4305A Barcode Label Printer
Intermec Parts (10234112)
CONSUMABLES, THERMAL TRANSFER RIBBON, THERMAMAX TMX1200 WAX, 4.09" x 1001'', 1" CORE, WOUND IN, 24 roll case
Temporarily out of stock; available to order
$186.86
+ Add to Quote
Intermec Parts (10233112)
CONSUMABLES, THERMAL TRANSFER RIBBON, THERMAMAX TMX1200 WAX, 3" x 1001'', 1" CORE, WOUND IN, 24 roll case
Temporarily out of stock; available to order
$136.98
+ Add to Quote
Datamax-O'Neil Ribbon (IQRES-110300)
IQRES RESIN RIBBON, 4.33" x 984', 1" CORE, 48 rolls/case. Also available as a single roll (Part# IQRES-110300-R).
In Stock
$2,014.90
+ Add to Quote
Datamax-O'Neil GPR Plus Premium Wax (226455)
3.5" x 360' Black Wax Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with paper labels. Also available as a single roll (Part# 226455-R).
In Stock
$164.04
+ Add to Quote
Datamax-O'Neil GPR Plus Premium Wax (226457)
4.33" x 360' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 24, Core Size: 0.5", Available as a single roll (226457-R)
In Stock
$228.05
+ Add to Quote
Recommended Printheads for Model: Datamax-O'Neil E-4305A Barcode Label Printer
Datamax-O'Neil E-Class (PHD20-2192-01)
Replacement Printhead Kit, 203 dpi, Compatible Printer Model E-Class
In Stock
$271.24
+ Add to Quote
Datamax-O'Neil E-Class Mark II & Mark III (PHD20-2268-01)
Replacement Printhead Kit, Honeywell-Datamax Spare Part, 300 dpi, Compatible with Printer Models E-Class Mark II & Mark III.
In Stock
$150.79
+ Add to Quote
Honeywell Printheads (430123-200-SP)
PRINTHEAD, 4IN SEIKO, UNCTD3.2 MM SC
Temporarily out of stock; available to order
$300.93
+ Add to Quote
Protect Your Product with TrueSupport!
TrueSupport is our platinum support service providing you with guaranteed access to our team of certified experts, live help desk technicians, repair management and much, much more. The value of our certified team far surpasses the price point. Don’t miss out on this value of protection and peace of mind for your business!
support plan
options
gold_badge platinum_badge
no
support
oem
contract
true
support
pro
true
support
enterprise
Live Tech Support ( 7:30am - 5pm CST ) $189 / hr. $189 / hr.
Software /Firmware Updates
Comprehensive Repair ( wear & tear )
High Priority Repair
Device Troubleshooting ( via phone )
Device Setup
Manufacturer RMA portal
Mobile Device Management
$64.38 $262.38
Call us for help choosing the right support plan: 800.351.9962

The Datamax-O'Neil EA3-00-1JP00A00 is also known as DMX-E4305ATTPEEL or EA3001JP00A00 .
