Datamax-O'Neil C93-00-48400004 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

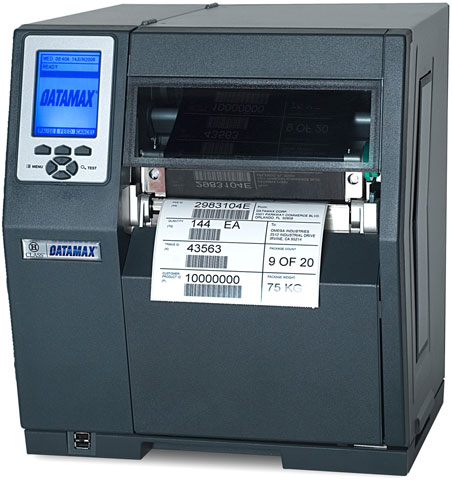

Datamax-O'Neil H-6308 - Thermal transfer Printer (300 dpi, 8 ips Print speed, 8MB Flash, Tall Display, Hub)
$3,889.20
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
The H-6308 provides outstanding performance, sound durability, and accurate print quality.

The H-6308 features a 6 inch print width, a 300 dpi print resolution, a 8" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200 MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-6308 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms, Standard SDIO and USB Host device ports provide support for additional memory and application versatility

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.40"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Media Supply Hub
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-6308
  • Product Name: H-Class H-6308 Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 13"
  • Width: 15"
  • Depth: 18.9"
  • Form Factor: Desktop
  • Weight (Approximate): 40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 6.70"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • PLZ
    • PLI
    • PLB

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model H-6308
Interface Options Serial, Parallel, USB, Ethernet
Print Speed 8
Maximum Print Width 6.40
Print Method Thermal Transfer
Label Core 3 inches, 1.5 inches
Max Roll Outer Diameter 8
Print Resolution 305 dpi, 300 dpi
Max Label Width 6.70
Printer Type Industrial
Included Features Rewinder
Printer Mobility Not Mobile
Ribbon Core 1
