Barcodes,Inc.

Datamax-O'Neil C83-00-48000004 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Datamax-O'Neil H-8308 X - Thermal transfer Printer (Tall)
$5,148.20
In Stock:
Ships Same Day
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

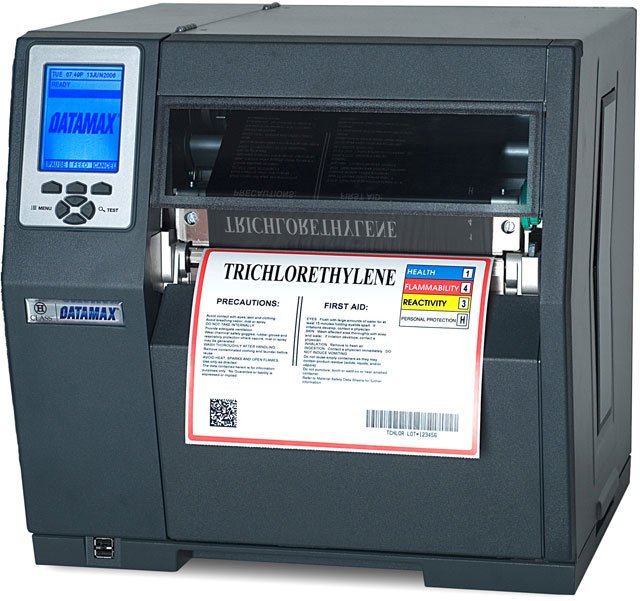

The Datamax-O'Neil H-8308X revolutionizes thermal and RFID label printing.

The Datamax-O-Neil H-8308X thermal barcode printer family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. Datamax-O-Neil H-8308X printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. Datamax-O-Neil H-8308X printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, Datamax-O-Neil H-8308X printers are designed with options to address evolving RFID applications.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.52"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • UPC 2 and 5 Digit Extension
    • Code 93
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • UPS Maxi Code
    • FIM
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Aztec Code
    • TLC 39
    • Micro PDF-417
    • RSS

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-8308X
  • Product Name: H-8308X Thermal Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 16.4"
  • Width: 17"
  • Depth: 19.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 9"
  • Maximum Label Length: 99.99"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Perforated Label
    • Continuous Tag
    • Ticket Stock
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Safety Standard
    • FCC
    • CE
  • Additional Information:
    • Real Time Clock:
    • Printer stores time and date with battery backup; Time stamp at print capability
    • Graphics Support:
    • PCX, .BMP, .IMG, and Datamax ASCII Format files

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model H-8308X
Interface Options USB, Serial, Ethernet, Parallel
Printer Type Industrial
Max Roll Outer Diameter 8
Print Speed 8
Maximum Print Width 8.52
Print Method Thermal Transfer
Max Label Width 9.00
Print Resolution 305 dpi, 300 dpi
Label Core 1.5 inches, 3 inches
Printer Mobility Not Mobile
Ribbon Core 1
