Datamax-O'Neil C83-00-08000004 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

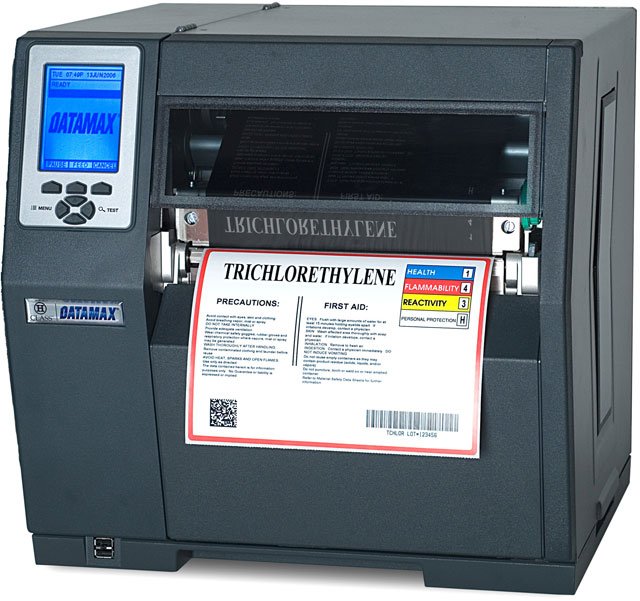

Datamax-O'Neil H-8308 X - DT
The Datamax-O'Neil H-8308X revolutionizes thermal and RFID label printing.

The Datamax-O-Neil H-8308X thermal barcode printer family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. Datamax-O-Neil H-8308X printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. Datamax-O-Neil H-8308X printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, Datamax-O-Neil H-8308X printers are designed with options to address evolving RFID applications.

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax-O'Neil
  • Manufacturer: Datamax-O'Neil
  • Product Model: 8308X
  • Product Name: H-Class 8308X Thermal Label Printer
  • Product Line: H-Class

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Width: 8.52"
  • Recommended Use: Label Print

Physical Characteristics

  • Height: 16.4"
  • Width: 17"
  • Depth: 19.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • H-Class 8308X Label Printer
    • Black power cord w/U.S. plug
    • H-Class 8308X Label Printer
    • Black power cord w/U.S. plug
  • Certifications & Standards:
    • Safety Standards:
    • FCC
    • CE

Media Types & Handling

  • Maximum Label Width: 9"
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Full specifications (PDF)

Full specifications (PDF)

Brand Datamax-O'Neil
Model H-8308X
Interface Options Serial, Parallel, Ethernet, USB
Print Speed 8
Maximum Print Width 8.52
Max Roll Outer Diameter 8
Print Method Thermal Transfer, Direct Thermal
Max Label Width 9.00
Label Core 1.5 inches, 3 inches
Print Resolution 305 dpi, 300 dpi
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
