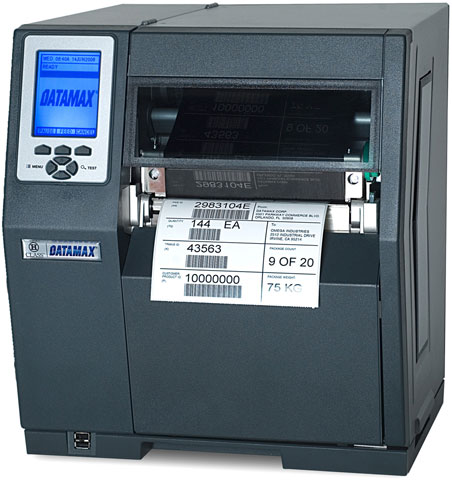

Datamax-O'Neil H-6210 – Barcode Label Printer – 203 dpi – Thermal Transfer – Rewinder

Part Number: C82-00-48400004
Model: H-6210
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  H-6210 Direct Thermal-Thermal Transfer (200 dpi, 10 ips Print Speed, Tall and Rewind)
Explore all Datamax H-6210 Barcode Label Printers
Add to Quote
Datamax-O'Neil C82-00-48400004 Barcode Label Printer
Datamax-O'Neil C82-00-48400004 Barcode Label Printer
Datamax-O'Neil C82-00-48400004 Barcode Label Printer
Datamax-O'Neil C82-00-48400004 Barcode Label Printer Datamax-O'Neil C82-00-48400004 Barcode Label Printer Datamax-O'Neil C82-00-48400004 Barcode Label Printer
Full specifications (PDF)

Datamax H-6210 Barcode Label Printer Model Overview

The H-6210 features a 6 inch print width, a 200 dpi print resolution, a 10" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-6210 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C82-00-48400004 Barcode Label Printer Overview

The Datamax H-6210 is the most advanced and feature rich printer solution designed for today's dynamic enterprise applications. This printer provides throughput that is up to twice as fast as other printers and its gear driven design provides rugged and reliable performance for 24x7 mission critical service. This printer offers the industry's largest graphical display that provides an easy to read view for quick navigation and printer notifications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
200
Maximum Print Width:
6.61"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Rewinder:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Paper
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
6.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
15"
Depth:
18.9"
Miscellaneous
Package Contents:
  • H-6210 Thermal Label Printer
  • CD Includes Software Media
Additional Information:

Graphics Support : PCX, .BMP, .IMG and Datamax ASCII Format files

Platform Supported:
PC
Item Numbers
GTIN: 0783555111093
UPC: 783555111093
EAN: 0783555111093
UNSPSC: 43212108

Recommended Accessories

Category

  • Barcode Label Rewinder (3)
  • Cables, Connectors, and Adapters (1)
  • Power Device (3)
  • Printer Accessories (64)
  • Scanner Accessories (1)
  • Seagull Scientific Barcode Software (2)
  • Spare Parts (2)

Recommended Accessories for Model: Datamax-O'Neil C82-00-48400004 Barcode Label Printer

Top Barcode Label Rewinder Purchased With Datamax-O'Neil C82-00-48400004

Top Cables, Connectors, and Adapters Purchased With Datamax-O'Neil C82-00-48400004

Top Power Device Purchased With Datamax-O'Neil C82-00-48400004

Top Printer Accessories Purchased With Datamax-O'Neil C82-00-48400004

  • Honeywell DPO78-2394-01 Accessory
    Honeywell DPO78-2394-01 Accessory
    The DMX-REW1 is a low-cost universal label rewinder/unwinder supporting labels up to 5 inches wide at speeds of up to 15 ips (inches per second). Any rewind core from 1 inch to 4 inches in diameter can be used. Label rolls up to 8 inches in diameter can be accommodated.
    In Stock
    $598.19
    Add to Quote
  • Honeywell DPO78-2393-01 Accessory
    Honeywell DPO78-2393-01 Accessory
    8 Inch, External Rewinder for W-class
    Item on backorder — chat for lead time
    $1,688.28
    Add to Quote
  • Honeywell 78-2667-01 Accessory
    Honeywell 78-2667-01 Accessory
    RFID Ready Upgrade (4 Inch, ROHS) for the H-Class
    Item on backorder — chat for lead time
    $2,696.65
    Add to Quote
See All Printer Accessories for Datamax-O'Neil C82-00-48400004 Barcode Label Printer >

Top Scanner Accessories Purchased With Datamax-O'Neil C82-00-48400004

Top Seagull Scientific Barcode Software Purchased With Datamax-O'Neil C82-00-48400004

  • Seagull Software BTA-2 Software
    Seagull Software BTA-2 Software
    BarTender Automation: Application License + 2 Printers (includes Maintenance), Use (Part# BTA-PRT) To Add Additional Printers To License. Priced per printer with unlimited computers, not per computer with unlimited printers.
    Item on backorder — chat for lead time
    $1,415.00
    Add to Quote
  • Seagull Software BTP-1 Software
    Seagull Software BTP-1 Software
    BarTender Professional: Application License + 1 Printer (includes 1 Year of Standard Support & Maintenance), For additional printer license (Part# BTP-PRT). Priced per printer with unlimited computers, not per computer with unlimited printers. No Physical Box: Product code via Electronic Delivery.
    Item on backorder — chat for lead time
    $548.00
    Add to Quote

Top Spare Parts Purchased With Datamax-O'Neil C82-00-48400004

The Datamax-O'Neil C82-00-48400004 Barcode Label Printer is also known as DMX-H6210TTR or C82-00-48400004.
