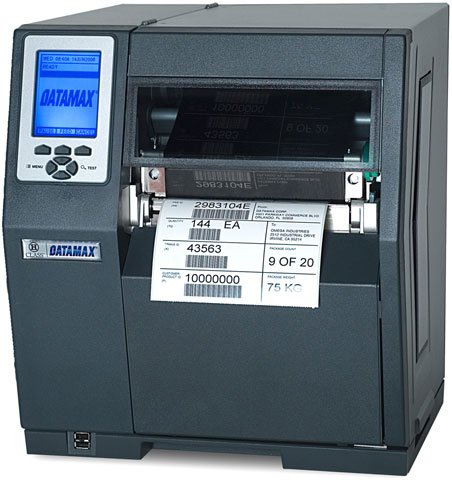

Datamax-O'Neil H-6210 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: C82-00-48000004
Model: H-6210
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal-Thermal Transfer 6.6" width, 10"/sec, 203 dpi, USB interface, 3" media hub and US power cord. Tall display.

Datamax H-6210 Barcode Label Printer Model Overview

The H-6210 features a 6 inch print width, a 200 dpi print resolution, a 10" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-6210 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C82-00-48000004 Barcode Label Printer Overview

The Datamax H-Class 6210 Label Printer is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-Class 6210 provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission critical service. Modular construction increases up-time for the highest levels of user productivity, and the industry's largest graphical display provides an easy to read view for quick navigation and printer notifications.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Width:
6.61"
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
15"
Depth:
18.9"
Miscellaneous
Package Contents:
  • H-Class 6210 Label Printer
  • Black power cord w/U.S. plug
Cables Included:
AC
Certifications & Standards:

Safety Standards:

  • FCC
  • CE
Item Numbers
GTIN: 0014540015509, 0783555093511, 0984537763631
UPC: 014540015509, 783555093511, 984537763631
EAN: 0014540015509, 0783555093511, 0984537763631
UNSPSC: 43212108
