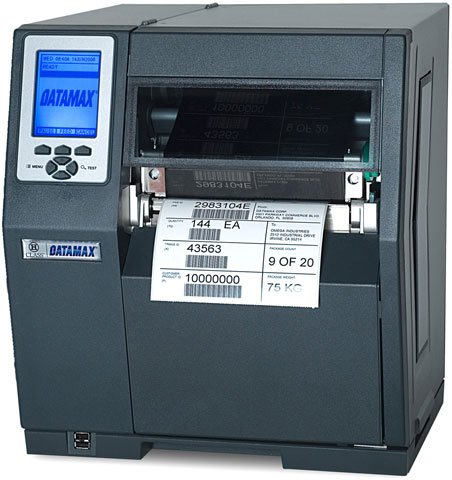

Datamax-O'Neil H-6308 – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: C73-00-48000004
Model: H-6308
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
305 dpi

Product Description:

  Direct Thermal-Thermal Transfer Printer (300 dpi, 8 ips Print Speed and Coated Side In)

Datamax H-6308 Barcode Label Printer Model Overview

The H-6308 features a 6 inch print width, a 300 dpi print resolution, a 8" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, a high-speed 32 bit/200MHz multi-tasking processor decreases processing times to increase data throughput, Standard 16MB DRAM and 8MB FLASH memory assures the space needed for seamless processing of the most demanding applications.The H-6308 provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility
Datamax-O'Neil C73-00-48000004 Barcode Label Printer Overview

The Datamax H-6308 thermal barcode printer is the most advanced and feature rich printer solution designed for today's dynamic enterprise applications. This printer provides throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. This printer offers the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.40"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-8
  • EAN-13
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Extension
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS MaxiCode
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Aztec Code
  • TLC 39
  • Micro PDF-417
  • RSS
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Paper
  • Continuous Form
  • Tag
  • Ticket Stock
  • Perforated Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
15"
Depth:
18.9"
Miscellaneous
Additional Information:

Graphics Supported : .PCX, .BMP, .IMG, and Datamax ASCII Format files

Platform Supported:
PC
Item Numbers
UNSPSC: 43212108
