Datamax-O'Neil H-6310X – Barcode Label Printer – 300 dpi, 305 dpi – Cutter

Part Number: C63-00-48040004
Model: H-6310X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Cutter

Product Description:

  THERM TRANSFER STND CUTTER 3IN MEDIA HUB

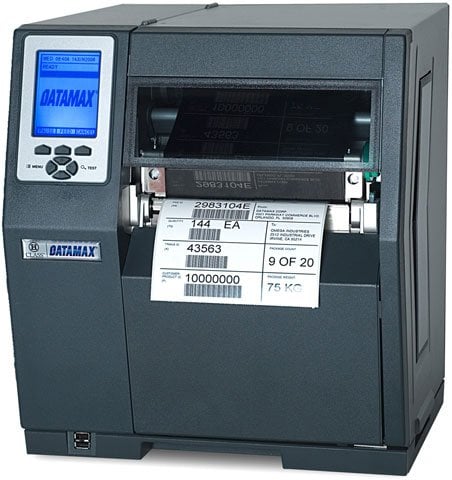

Honeywell H-6310X Barcode Label Printer Model Overview

The Datamax-O'Neil H-Class: H-6310X Industrial Printer is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. Part of the thermal barcode printer family, the Datamax-O'Neil H-Class: H-6310X Industrial Printer provides throughput that is up to twice as fast as other printers in its class. The gear-driven design of the H-6310X provides rugged and dependable performance for 24x7 mission-critical service. The modular construction of this industrial printer increases up-time for the highest levels of user productivity, and also helps provide the lowest cost of ownership. The Datamax-O'Neil H-Class: H-6310X Industrial Printer, the tall model of the H-6310 printer, offers the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. This tall model is capable of rewinding full roll of labels with the optional internal rewinder installed. In addition, Datamax-O'Neil H-Class: H-6310X printers are designed with options to address evolving RFID applications.

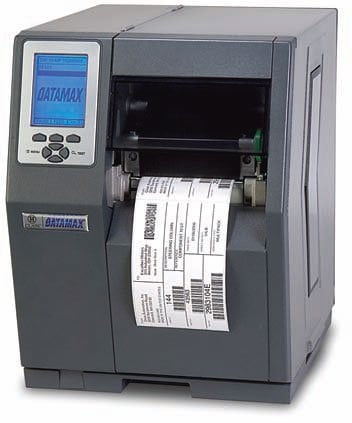

Datamax-O'Neil C63-00-48040004 Barcode Label Printer Overview

The Datamax H-Class 6310X Label Printer is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-Class 6310X provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission critical service. Modular construction increases up-time for the highest levels of user productivity, and the industry's largest graphical display provides an easy to read view for quick navigation and printer notifications.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Width:
6.40"
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
15"
Depth:
19.3"
Miscellaneous
Package Contents:
  • H-Class 6310X Label Printer
  • Black power cord w/U.S. plug
Cables Included:
AC
Certifications & Standards:

Safety Standards:

  • FCC
  • CE
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil C63-00-48040004 Barcode Label Printer is also known as DMX-H6310XTC or C63-00-48040004.
