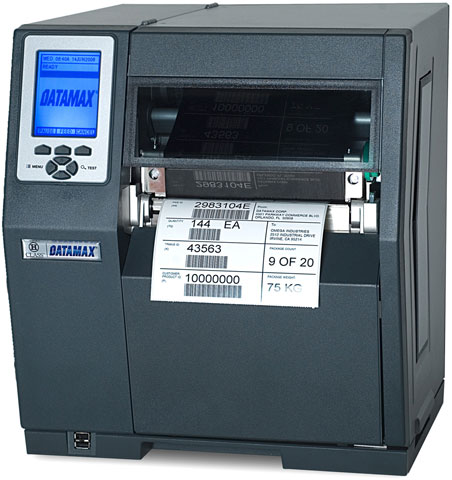

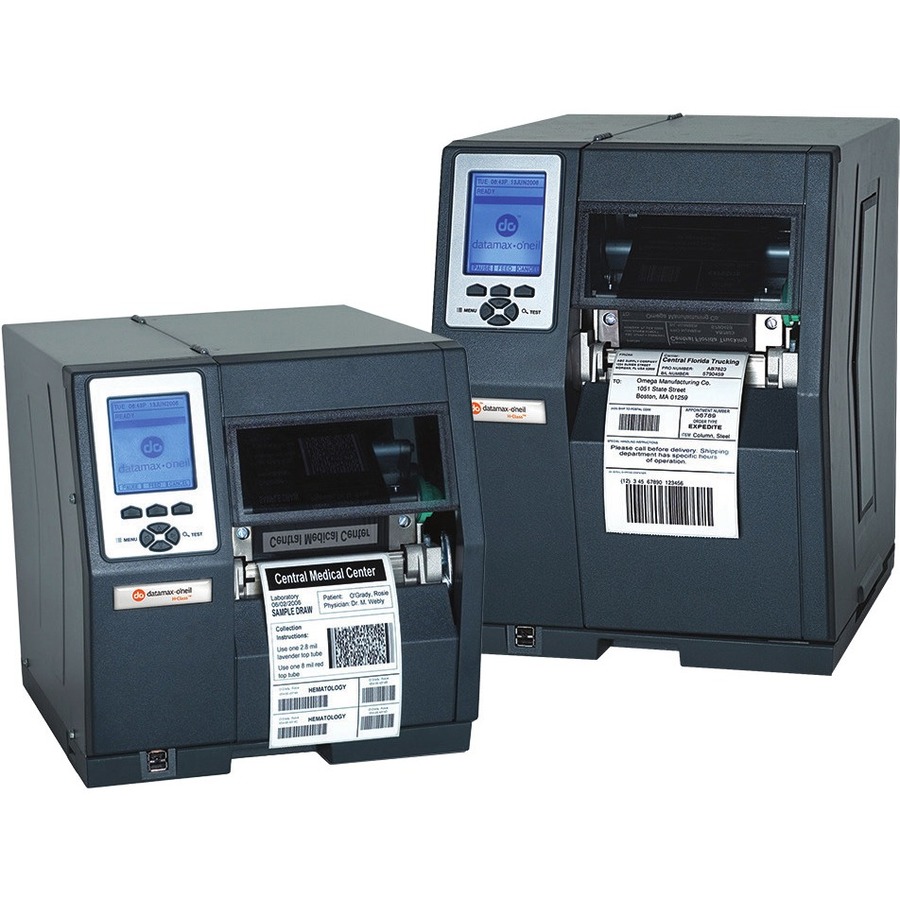

Datamax-O'Neil H-6310X – Barcode Label Printer – 300 dpi, 305 dpi

Part Number: C63-00-48000004
Model: H-6310X
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
6.75 inch

Product Description:

  Thermal Transfer, 6" print width, 300 dpi, Serial-Parallel-USB-Ethernet interface, 3" media hub and US power cord.
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Width:
6.40"
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
6.70"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
15"
Depth:
19.3"
Miscellaneous
Package Contents:
  • H-Class 6310X Label Printer
  • Black power cord w/U.S. plug
Cables Included:
AC
Certifications & Standards:

Safety Standards:

  • FCC
  • CE
Item Numbers
GTIN: 0056663735063
UPC: 056663735063
EAN: 0056663735063
UNSPSC: 43212108
