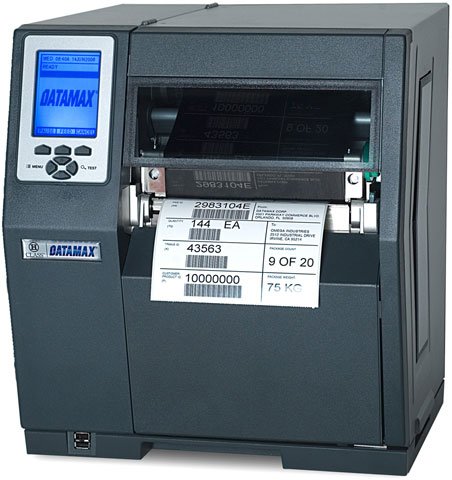

Datamax-O'Neil H-6212X – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: C62-00-48000004

Model: H-6212X

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Product Description:

H-6212X Direct Thermal-Thermal Transfer Printer (203 dpi and 12 ips Print Speed)

Explore all Datamax-O'Neil H-6212X Barcode Label Printers

Add to Quote

Datamax-O'Neil C62-00-48000004 Barcode Label Printer

Overview

Full specifications (PDF)

Datamax-O'Neil H-6212X Barcode Label Printer Model Overview

The Datamax-O'Neil H-Class: H-6212X Industrial Printer, part of the thermal barcode printer family, is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. The Datamax-O'Neil H-Class: H-6212X Industrial Printer provides throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. The H-6212X Industrial Printer, the tall model of the H-6212 Industrial Printer, offers the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. This tall model is capable of rewinding full roll of labels with the optional internal rewinder installed. In addition, the Datamax-O'Neil H-Class: H-6212X Industrial Printer is designed with options to address evolving RFID applications.

Datamax-O'Neil C62-00-48000004 Barcode Label Printer Overview

The Industrial Work Horse

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

6.61"

Barcode Symbology Supported:

Code 3 of 9
UPC-A
UPC-E
Interleaved 2 of 5
Industrial 2 of 5
Standard 2 of 5
Code 11
Code 93
Code 128
EAN-13
EAN-8
HIBC
Codabar
Plessey
UPC 2 and 5 Digit Addendums
POSTNET
UCC/EAN 128
Telepen
Planet Code
FIM
USPS-4 State
Maxi Code
PDF-417
USD-8
Data Matrix
QR Code
Codablock
Code 16K
Aztec Code
TLC 39
Micro PDF-417
GS1 DataBar
HIBCC
EAN/JAN-13
EAN/JAN-8

Real Time Clock:

Yes

Application/Usage:

Desktop

Features:

Mirror Printing

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Memory Card Slot:

Yes

Memory Card Supported:

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Fanfold
Die-cut Label
Continuous Label
Continuous Tag
Perforated Label
Ticket Stock
Black Mark
Roll Fed
Continuous Form
Tag Stock

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

6.70"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

16.4"

Width:

15"

Depth:

19.3"

Weight (Approximate):

53 lb

Miscellaneous

Package Contents:

H-Class H-6212X Label Printer
Software CD

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0014546639846, 0682017492681

UPC: 014546639846, 682017492681

EAN: 0014546639846, 0682017492681

UNSPSC: 43212108
